Swing Augers
Meridian’s heavy-duty Swing Augers are rugged and versatile, accommodating any farm or milling grain management. Our frame design allows for better weight distribution, easy maneuverability as well as stability when operating the auger in the raised position. Our goal is to equip the farm operation for optimum efficiency and performance as well as safety. Meridian products are designed using high quality parts and industry-leading manufacturing techniques, improving farm and time productivity, particularly during the busiest seeding and harvest seasons.
Meridian’s scissor lift mechanical drive grain auger is powder coated for a durable long-lasting finish. The reversing kit comes standard with our Meridian Swing Auger. The hopper lift can accommodate any operating situation by placing the hopper on the left or right side of the main tube. Meridian’s 14” Swing Auger moves up to 15,000 bushels an hour and is one of the quietest augers on the market. Trust the Meridian Swing Auger for unparalleled loading performance.
Resources Show / Hide more information
Features Show / Hide more information
Applications Show / Hide more information
Specifications Show / Hide more information

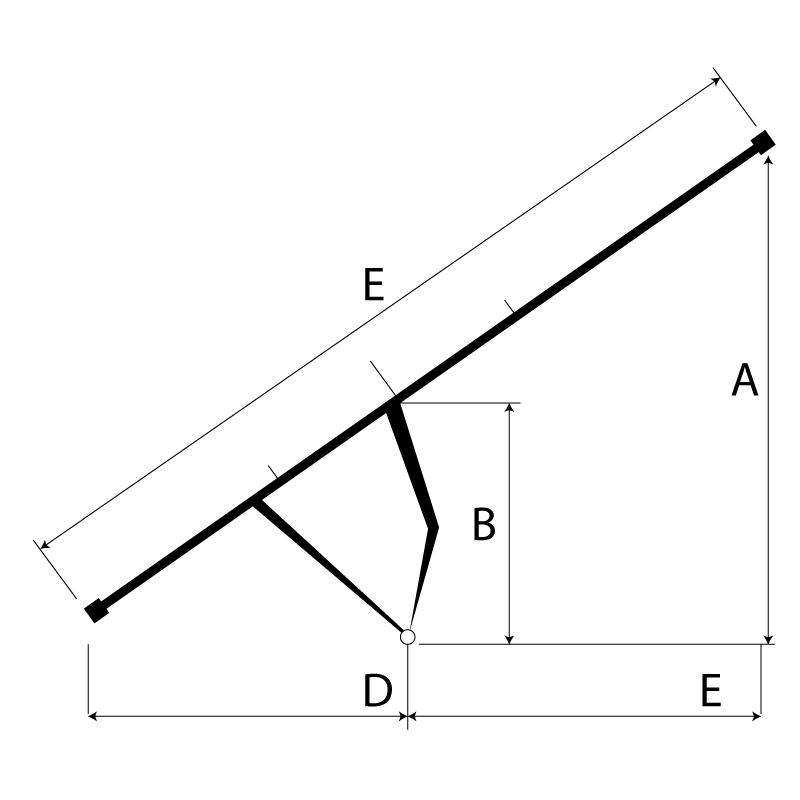

SLMD 10-65 | SLMD 10-75 | SLMD 10-85 | SLMD 12-72 | SLMD 12-79 | SLMD 12-85 | SLMD 12-95 | ||
---|---|---|---|---|---|---|---|---|
A | Raised | 39’-3’’ | 45’ | 50’-9’’ | 45’ 6” | 49’ 6” | 53’ 7” | 57’ 1” |
A | Lowered | 9’-4’’ | 10’-7’’ | 11’-10’’ | 10’ 9” | 10’ 9” | 10’ 9” | 14’ 6” |
B | Raised | 24’-9’’ | 24’-9’’ | 24’-9’’ | 25’ 4” | 25’ 4” | 29’ 4” | 29’ 4” |
B | Lowered | 6’-9’’ | 6’-9’’ | 6’-9’’ | 6’ 7” | 6’ 7” | 6’7” | 6’ 7” |
C | Raised | 30’-2’’ | 30’-2’’ | 30’-2’’ | 30’ 6” | 33’ 2” | 35’ 9” | 35’ 9” |
C | Lowered | 38’-4’’ | 38’-4’’ | 38’-4’’ | 39’ 9” | 43’ 1” | 46’ 5” | 46’ 5” |
D | Raised | 23’-5’’ | 31’-7’’ | 39’-7’’ | 25’ 8” | 28’ 3” | 30’ 10” | 40’ 10” |
D | Lowered | 27’-2’’ | 37’-1’’ | 47’-0’’ | 31’ 5” | 34’ 9” | 38’ | 52’ |
E | Tube Length | 65’ | 75’ | 85’ | 72’ 6” | 79’ | 85’ 7” | 95’ 7” |
Lbs. | Lbs. | Lbs. | Lbs. | Lbs. | Lbs. | Lbs. | ||
Auger Hitch Weight | 1440 | 1250 | 1060 | 1400 | 1420 | 1440 | 1400 | |
Auger Weight | 6015 | 6214 | 6462 | 6506 |
*SLMD = Scissor Lift Mechanical Drive
Model | SLMD10 | SLMD12 |
---|---|---|
Auger Tube | 10” OD x 13 Gauge | 12” OD x 12 Gauge |
Auger Flight | 9’’ OD x 3/16’’ c/w Continuous Super-EdgeTM | Continuous Cup ¼” SuperEdge Flight |
Drive | 540 rpm Tractor PTO | 540 rpm Tractor PTO |
Swing Auger | 10” Diameter Mechanical Drive c/w Brake Winch & Intake Boot | 12” Diameter Mechanical Drive c/w Brake Winch & Intake Boot |
Wheels | 15’’ 205/75R15 | 16” c/w Tapered Roller Bearings |
Power Required | 100/110/120 HP Tractor | 100 – 120 HP Tractor |
Capacity Per Hour | Up to 5,450 Bushels/Hour | 7,800 – 9,000 Bushels |
Standard Hopper Size | 62’’ x 36’’ x 9-3/8’’ | 41 ½” W x 52” L x 13” H c/w Patented Reverse Flighting |
SLMD 10-65 | SLMD 10-75 | SLMD 10-85 | SLMD 12-72 | SLMD 12-79 | SLMD 12-85 | SLMD 12-95 | ||
---|---|---|---|---|---|---|---|---|
A | Raised | 11.88 | 13.71 | 15.24 | 13.87 | 15.09 | 16.33 | 17.4 |
A | Lowered | 2.74 | 3.04 | 3.55 | 3.28 | 3.28 | 3.28 | 4.42 |
B | Raised | 7.31 | 7.31 | 7.31 | 7.72 | 8.33 | 8.94 | 8.94 |
B | Lowered | 1.82 | 1.82 | 1.82 | 2.01 | 2.01 | 2.01 | 2.01 |
C | Raised | 9.14 | 9.14 | 9.14 | 9.3 | 10.11 | 10.9 | 10.9 |
C | Lowered | 11.58 | 11.58 | 11.58 | 12.12 | 13.13 | 14.15 | 14.15 |
D | Raised | 7.1 | 9.44 | 11.88 | 7.82 | 8.61 | 9.4 | 12.45 |
D | Lowered | 8.22 | 11.27 | 14.32 | 9.58 | 10.59 | 11.58 | 15.85 |
E | Tube Length | 19.8 | 22.8 | 25.9 | 22.1 | 24.08 | 26.09 | 29.13 |
Kg | Kg | Kg | Kg | Kg | Kg | Kg | ||
Auger Hitch Weight | 653 | 566 | 480 | 635 | 645 | 655 | 635 | |
Auger Weight | 1621 | 1763 | 1929 | 2728 | 2818 | 2931 | 2951 |
*SLMD = Scissor Lift Mechanical Drive
Model | SLMD10 | SLMD12 |
---|---|---|
Auger Tube | 10” OD x 13 Gauge | 12” OD x 12 Gauge |
Auger Flight | 9’’ OD x 3/16’’ c/w Continuous Super-EdgeTM | Continuous Cup ¼” SuperEdge Flight |
Drive | 540 rpm Tractor PTO | 540 rpm Tractor PTO |
Swing Auger | 10” Diameter Mechanical Drive c/w Brake Winch & Intake Boot | 12” Diameter Mechanical Drive c/w Brake Winch & Intake Boot |
Wheels | 15’’ 205/75R15 | 16” c/w Tapered Roller Bearings |
Power Required | 100/110/120 HP Tractor | 100 – 120 HP Tractor |
Capacity Per Hour | Up to 5,450 Bushels/Hour | 7,800 – 9,000 Bushels |
Standard Hopper Size | 62’’ x 36’’ x 9-3/8’’ | 41 ½” W x 52” L x 13” H c/w Patented Reverse Flighting |

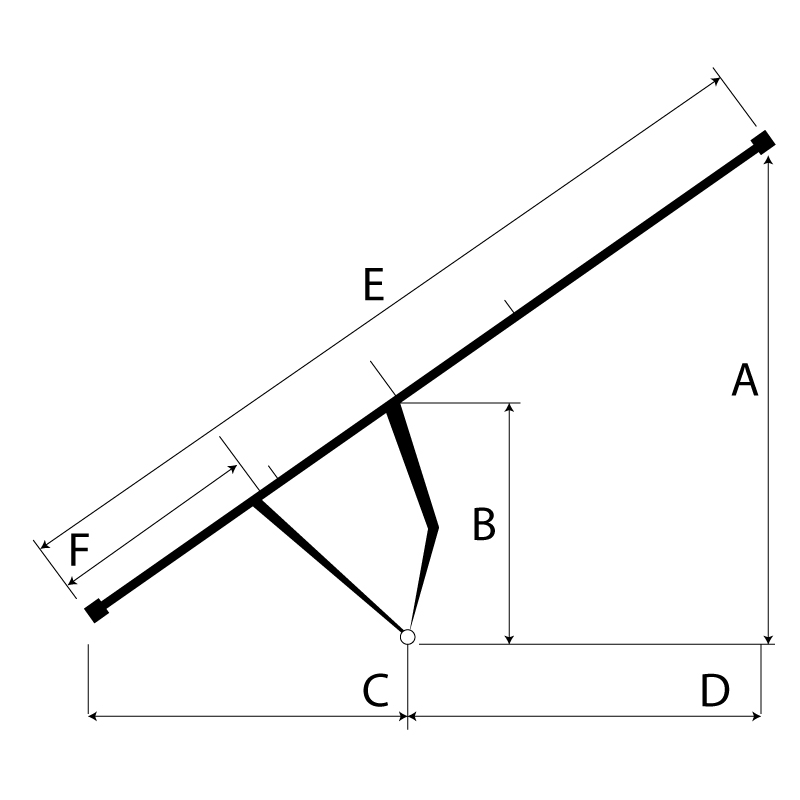

1375 | 1385 | 1395 | 13115 | ||
---|---|---|---|---|---|
A | TUBE LENGTH | 75′ | 85′ | 95’ | 115’ |
B | RAISED | 24’7’’ | 24’ 7’’ | 33’-1” | 33’-1” |
B | LOWERED | 6’ 6” | 6’ 6” | 6’-4” | 6’-4” |
C | RAISED | 44’ 4” | 49’ 7’’ | 59’-4” | 71’-7” |
C | LOWERED | 10’ 1” | 11’ 6’’ | 10′-5″ | 14’-11” |
D | RAISED | 32’3” | 32’ 3” | 39’-5” | 39’-5” |
D | LOWERED | 40’ | 40’ | 49′-11″ | 49′-11″ |
E | RAISED | 30’ 6’’ | 39’ 5’’’ | 37’ | 52’-10″ |
E | LOWERED | 36’ | 45’ 11 | 45’-8” | 65’-6” |
Model | 1375 | 1385 | 1395 | 13115 |
---|---|---|---|---|
AUGER TUBE | 12.75” OD x 12 Gauge | |||
AUGER FLIGHT | 11 3/4’’ OD x 5/16’’ c/w Continuous Super-Edge™ | |||
TUBE CONNECTORS | HD 2’’ x 2’’ x 1/4’’ Angle Flange | |||
UNDERCARRIAGE | A-Frame 8’’ x 3’’ x 3/16’’, Main Frame 6’’ x 4’’ x 3/16’’ | |||
SPROCKET & CHAIN | Hardened Tooth Sprockets & #60 Chain | |||
DRIVE | 540 or 1000 rpm Tractor PTO | |||
SWING AUGER | ||||
WHEELS | Tire ST235/80R16 c/w 6 Bolt on 5.5” BC | |||
POWER REQUIRED | 100-125 HP Tractor | 175-185 HP Tractor | ||
CAPACITY | Up to 13,000BPH | |||
HOPPER DIMENSIONS | 62’’x 41.5’’ x 13’’ | |||
TRANSPORT HEIGHT | 13’-1” | 14’ 9’’ | 14’-2” | 15’ |
TRANSPORT LENGTH | 77’ 1” | 87’ 2’’ | 97’-1” | 116’-10” |
TRANSPORT WIDTH | 12′-4″ | 14’-10” | ||
AXLE EXTENSION WIDTH | 15-4″ | 18’-10” |
1375 | 1385 | 1395 | 13115 | ||
---|---|---|---|---|---|
A | TUBE LENGTH | 22.8M | 25.9M | 28.9M | 35M |
B | RAISED | 7.5m | 10.1m | ||
B | LOWERED | 2m | 1.9m | ||
C | RAISED | 13.5m | 15.1m | 18.1m | 21.8m |
C | LOWERED | 3.1m | 3.5m | 3.2m | 4.5m |
D | RAISED | 9.8m | 12m | ||
D | LOWERED | 12.2m | 15.2m | ||
E | RAISED | 9.3m | 12m | 11.2m | 16.1m |
E | LOWERED | 11m | 14m | 13.1m | 20m |
Model | 1375 | 1385 | 1395 | 13115 |
---|---|---|---|---|
AUGER TUBE | 12.75” OD x 12 Gauge | |||
AUGER FLIGHT | 11 3/4’’ OD x 5/16’’ c/w Continuous Super-Edge™ | |||
TUBE CONNECTORS | HD 2’’ x 2’’ x 1/4’’ Angle Flange | |||
UNDERCARRIAGE | A-Frame 8’’ x 3’’ x 3/16’’, Main Frame 6’’ x 4’’ x 3/16’’ | |||
SPROCKET & CHAIN | Hardened Tooth Sprockets & #60 Chain | |||
DRIVE | 540 or 1000 rpm Tractor PTO | |||
SWING AUGER | ||||
WHEELS | Tire ST235/80R16 c/w 6 Bolt on 5.5” BC | |||
POWER REQUIRED | 100-125 HP Tractor | 175-185 HP Tractor | ||
CAPACITY | Up to 5.4 Metric Tonnes/Minute | |||
HOPPER DIMENSIONS | 157.5cm x105.4cm x33cm | |||
TRANSPORT HEIGHT | 4m | 4.5m | 4.3m | 4.6m |
TRANSPORT LENGTH | 23.5m | 26.6m | 29.6m | 35.6m |
TRANSPORT WIDTH | 3.8m | 4.5m | ||
AXLE EXTENSION WIDTH | 4.7m | 5.7m |

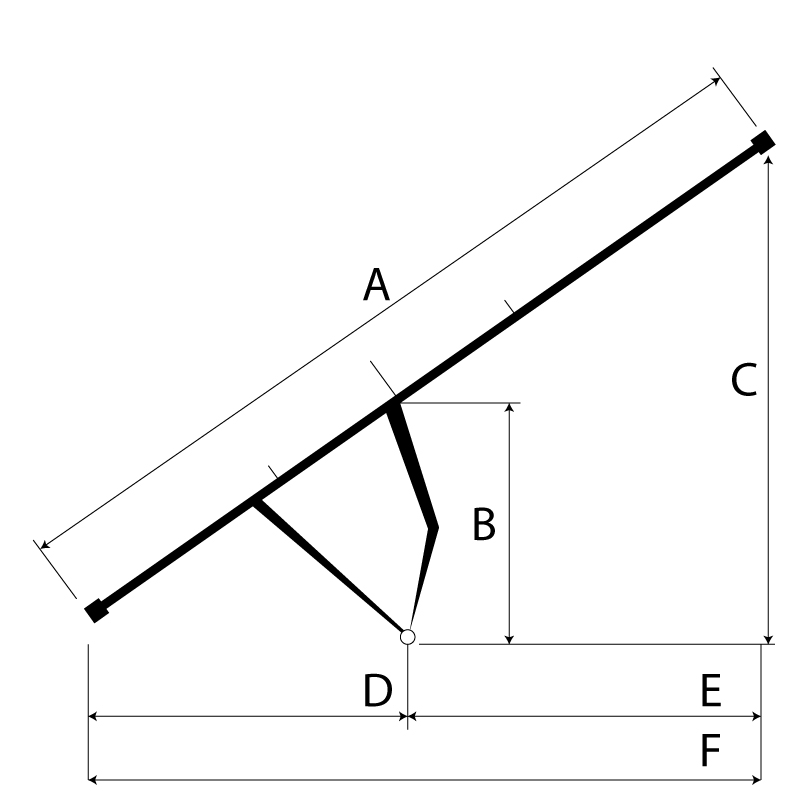

SLMD 14-95 | SLMD 14-105 | SLMD 14-115 | |||
---|---|---|---|---|---|
Fixed Axle | Fixed Axle | Axles Retracted | Axles Extended | ||
A | Raised | 69’ 3” | 76’ 4” | 83’3” | 84’ 2” |
A | Lowered | 9’ 4” | 10’ 3” | 12’ 1” | 13’ 3” |
B | Raised | 36’ 2” | 36’ 2” | 36’ 5” | 36’ 9” |
B | Lowered | 5’ 3” | 5’ 3” | 5’ 11” | 6’ 6” |
C | Raised | 37’ 0” | 37’ 0” | 37’ 0” | 37’ 0” |
C | Lowered | 46’ 0” | 46’ 0” | 46’ 5” | 46’ 5” |
D | Raised | 29’ 8” | 36’ 9” | 42’ 10” | 41’ 11” |
D | Lowered | 46’ 7” | 56’ 8” | 66’ 2” | 66’ 0” |
E | Tube Length | 95’ 0” | 105’ 0” | 115’ 0” | 115’ 0” |
F | Swing Length | 20’ 5” | 20’ 5” | 20’ 5” | 20’ 5” |
data-width | 13’ 0” | 13’ 0” | 14’ 3” | 17’ 5” | |
Transport Length | 96’ 4” | 106’ 5” | 116’ 4” | — | |
Lbs. | Lbs. | Lbs. | |||
Auger Weight | 3010 | 2585 | 2160 | ||
Auger Hitch Weight | 11420 | 11715 | 12030 |
SLMD14 | |
---|---|
Auger Tube | 14” OD x 11 Gauge |
Auger Flight | ¼” Flight on 3” Core |
Drive | 1,000 rpm Tractor PTO |
Lift | Dual 5 ½” Cylinders, Lifting Pressure 2,200 psi |
Swing Auger | Low Profile, PTO Driven, Steel Cut Sprockets, High Speed Roller Chain |
Wheels | 16” c/w Tapered Roller Bearings |
Under Carriage | Formed Steel Frame, 18” Wheels |
Power Required | 150 – 250 HP Tractor |
Capacity Per Hour | 13,000 – 15,000 Bushels |
Standard Hopper Size | 46” W x 74” L x 12 ¾” H c/w Patented Reverse Flighting |
Low Profile Hopper Size | Optional |
SLMD 14-95 | SLMD 14-105 | SLMD 14-115 | |||
---|---|---|---|---|---|
Fixed Axle | Fixed Axle | Axles Retracted | Axles Extended | ||
A | Raised | 21.1 | 25.7 | 25.4 | 25.3 |
A | Lowered | 2.8 | 3.1 | 3.7 | 4 |
B | Raised | 11 | 11 | 11.1 | 11.2 |
B | Lowered | 1.6 | 1.6 | 1.8 | 2 |
C | Raised | 11.3 | 11.3 | 11.3 | 11.3 |
C | Lowered | 14 | 14 | 14.1 | 14.1 |
D | Raised | 9 | 11.2 | 13.1 | 12.8 |
D | Lowered | 14.2 | 17.3 | 20.2 | 20.1 |
E | Tube Length | 29 | 32 | 35.1 | 35.1 |
F | Swing Length | 6.2 | 6.26.2 | 6.2 | 6.2 |
data-width | 4 | 4 | 4.3 | 5.3 | |
Transport Length | 29.4 | 32.5 | 35.5 | — | |
Kg | Kg | Kg | |||
Auger Weight | 1365 | 1175 | 980 | ||
Auger Hitch Weight | 5180 | 5315 | 5455 |
SLMD14 | |
---|---|
Auger Tube | 14” OD x 11 Gauge |
Auger Flight | ¼” Flight on 3” Core |
Drive | 1,000 rpm Tractor PTO |
Lift | Dual 5 ½” Cylinders, Lifting Pressure 2,200 psi |
Swing Auger | Low Profile, PTO Driven, Steel Cut Sprockets, High Speed Roller Chain |
Wheels | 16” c/w Tapered Roller Bearings |
Under Carriage | Formed Steel Frame, 18” Wheels |
Power Required | 150 – 250 HP Tractor |
Capacity Per Hour | 13,000 – 15,000 Bushels |
Standard Hopper Size | 46” W x 74” L x 12 ¾” H c/w Patented Reverse Flighting |
Low Profile Hopper Size | Optional |
Accessories & Options Show / Hide more information
Warranty Show / Hide more information
Paint: 2 years under normal, non-commercial use.
Structural:
- 2 years limited parts and labor
- Applies to defects in material and workmanship
- Commercial applications – 90 days only
- Fertilizer application voids warranty
To learn more, call your local dealer.
