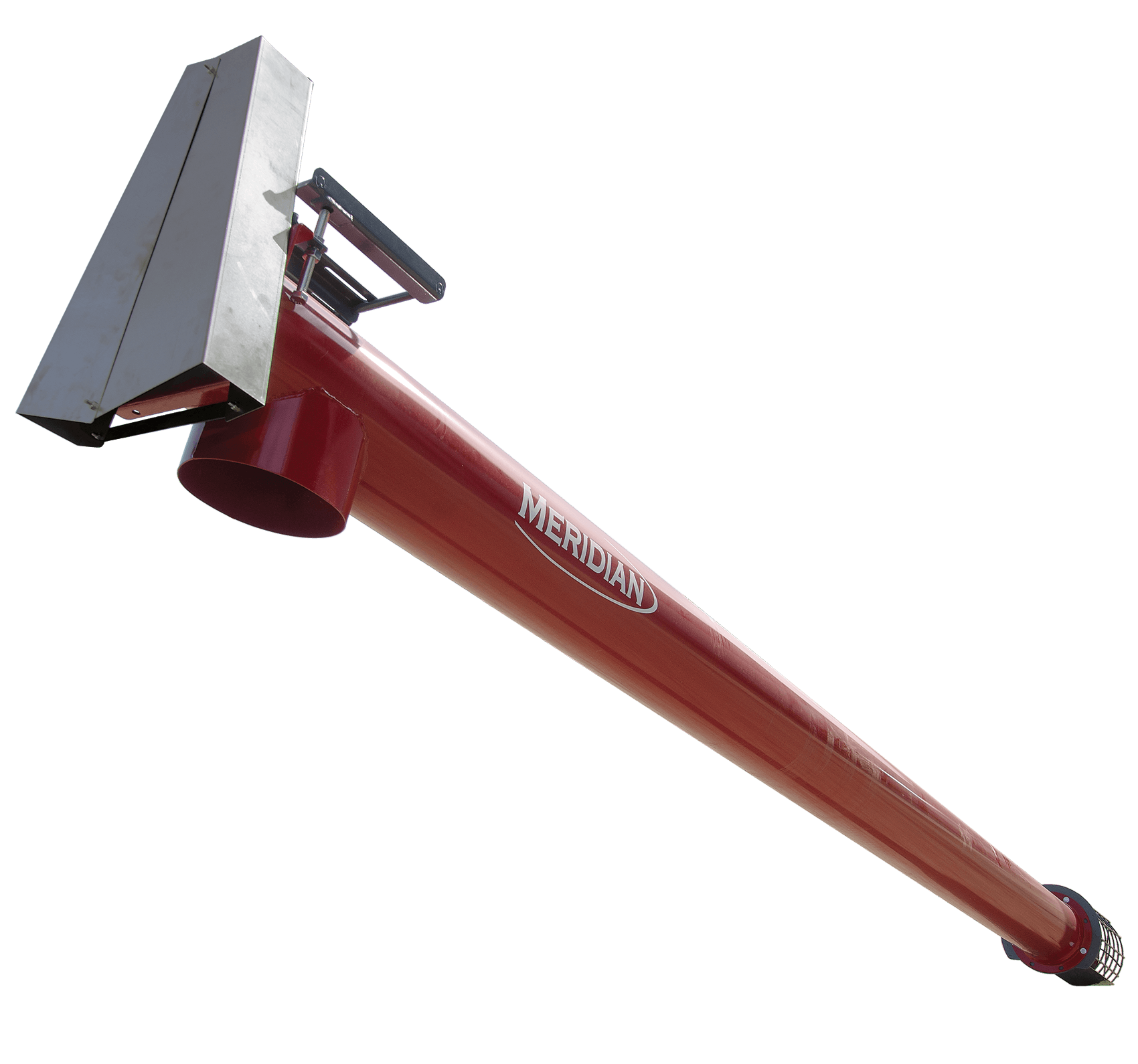

A utility auger that runs regularly needs to fit the setup and hold up to the work. Meridian Utility Augers are available in 6-, 8- and 10-inch diameters with a base length of 16′ and extensions available in 5′, 10′, and 15′ lengths. They are designed for permanent installation in grain and feed handling applications.
Available 5-, 10- and 15-foot extensions let you match the auger length to your bin, mill or feed system. Heavy-duty construction, continuous flighting and splined extension couplings make it a practical choice for equipment that’s expected to work day after day.
Use the table below to compare pulley and horsepower requirements for each diameter and length.
| Auger Diameter | Motor Pulley Requirement | HP Requirement 16′-21′ Length | HP Requirement 26′-31′ Length | HP Requirement 36′-41′ Length | HP Requirement 46′-51′ Length | HP Requirement 56′-61′ Length | Flighting Speed |
| 6″ | 2B 3 1/4″- 4″ | 1.5 – 2 HP | 3 HP | 3 – 5 HP | 5 HP | 7.5 HP | 480-580 RPM |
| 8″ | 2B 3 1/4″- 3 1/2″ | 3 HP | 5 HP | 5 – 7.5 HP | 7.5 – 10 HP | 10 HP | 480-510 RPM |
| 10″ | 2B 3 1/4″- 3 1/2″ | 3 – 5 HP | 5 – 7.5 HP | 7.5 – 10 HP | 10 – 15 HP | 15 – 20 HP | 480-51 RPM |
