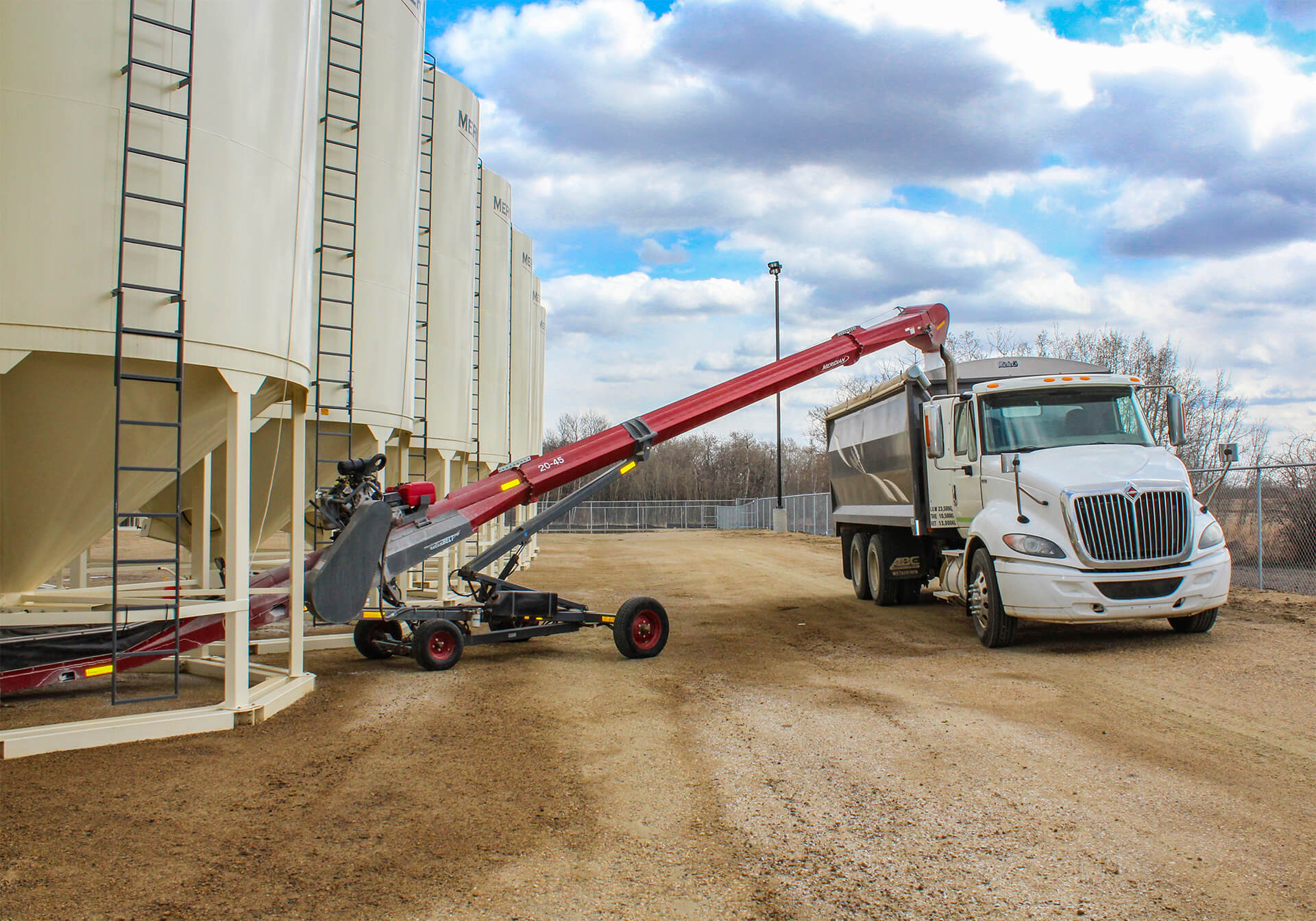

Meridian manufcturingTruck Load Conveyor

Truck Load Conveyor

Meridian sells through a network of Authorized dealers. If no dealer is selected, we will reach out with more information

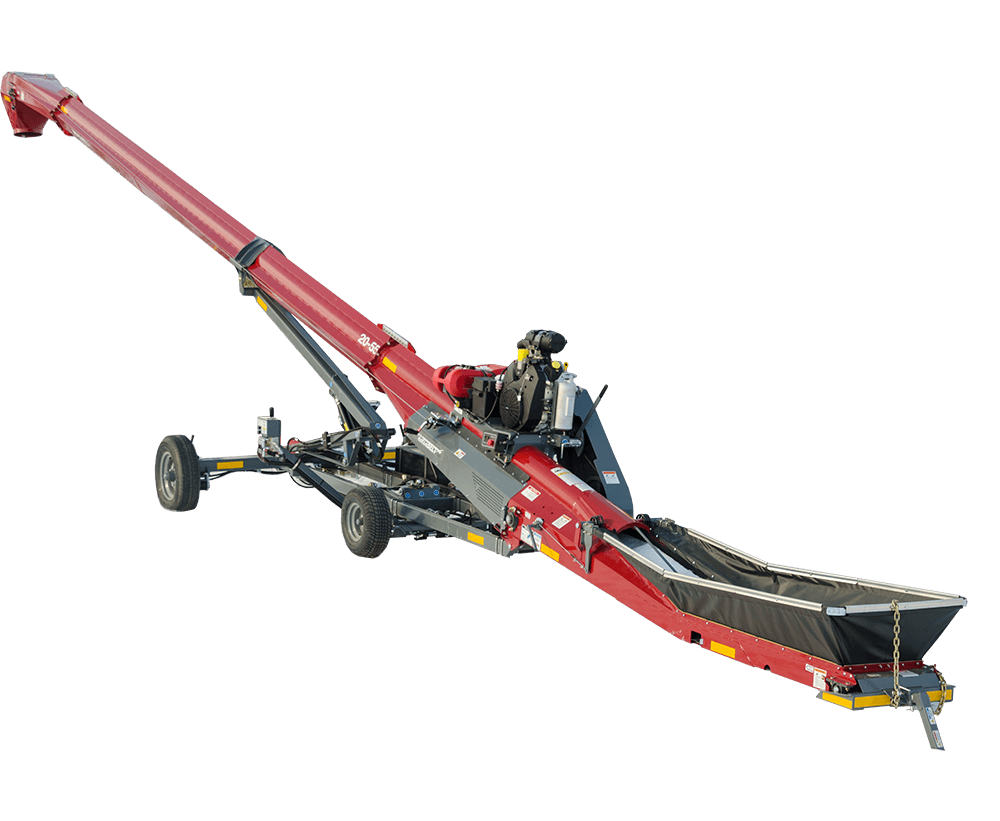

Meridian Manufacturing: Truck Load Conveyor

When choosing a truck load conveyor, belt width, capacity and material compatibility all have to fit the job. The Meridian 1548 uses a 15-inch belt to move grain, pulses and fertilizer at capacities up to 6,500 BPH. For higher-capacity grain and seed handling, the 2045 and 2055 pair a 20-inch chevron belt with a straight hopper design to deliver up to 12,000 BPH with fewer rollers and fewer wear parts.

The 2045 and 2055 are also available with a Canola Ready Package that adds a larger drive roller, skived belt, hopper flashing and scrapers. The package maintains capacities up to 12,000 BPH while improving the conveyor’s ability to handle canola and fertilizer.

Talk with your local Meridian dealer to compare the models and choose the right configuration for your material and loading setup.

1500 Series

ModelCapacityBelt Surface LengthWeightWeight with Hi-Power MoverLowered Transport HeightMaximum Raised Discharge HeightRaised Discharge HeightRaised Discharge Height with Hi-Power MoverIntake Reach (Lowered | Raised)Intake Reach with Hi-Power Mover (Lowered | Raised)Wheel Transport WidthLift MechanismMinimum Horsepower RequirementBelt WidthCollapsed Hopper DimensionsExtended Hopper Dimensions
1548Up to 6,500 BPH45′ + 2′ in hopper2,535 lbs2,690 lbs12’7″21’1″18’2″20’8″19’10” | 20’6″14’4″ | 13’1″7’10”Standard manual crank, hydraulic and electric winch availableGas 26.5 HP or Electric 20 HP15″36″W x 60″L x 8″H36″W x 60″L x 16″H

2000 Series

ModelCapacityTube WidthBelt SizeTransport LengthTransport Height15° height15° reach25° height25° reach30° height30° reach35° height35° reach
2045up to 12,000BPH10″20″42′11’9″N/AN/A16′ 9″43′20′ 8″41′ 4″24′ 1″*39′ 6″*
2055up to 12,000BPH10″20″52′12’6″11′ 7″54′ 11″21′52′ 1″25′ 9″*49′ 11″*N/AN/A

Common Features (0 features)

1500 Series

2000 Series

Common Options (0 selected)

1500 Series

2000 Series

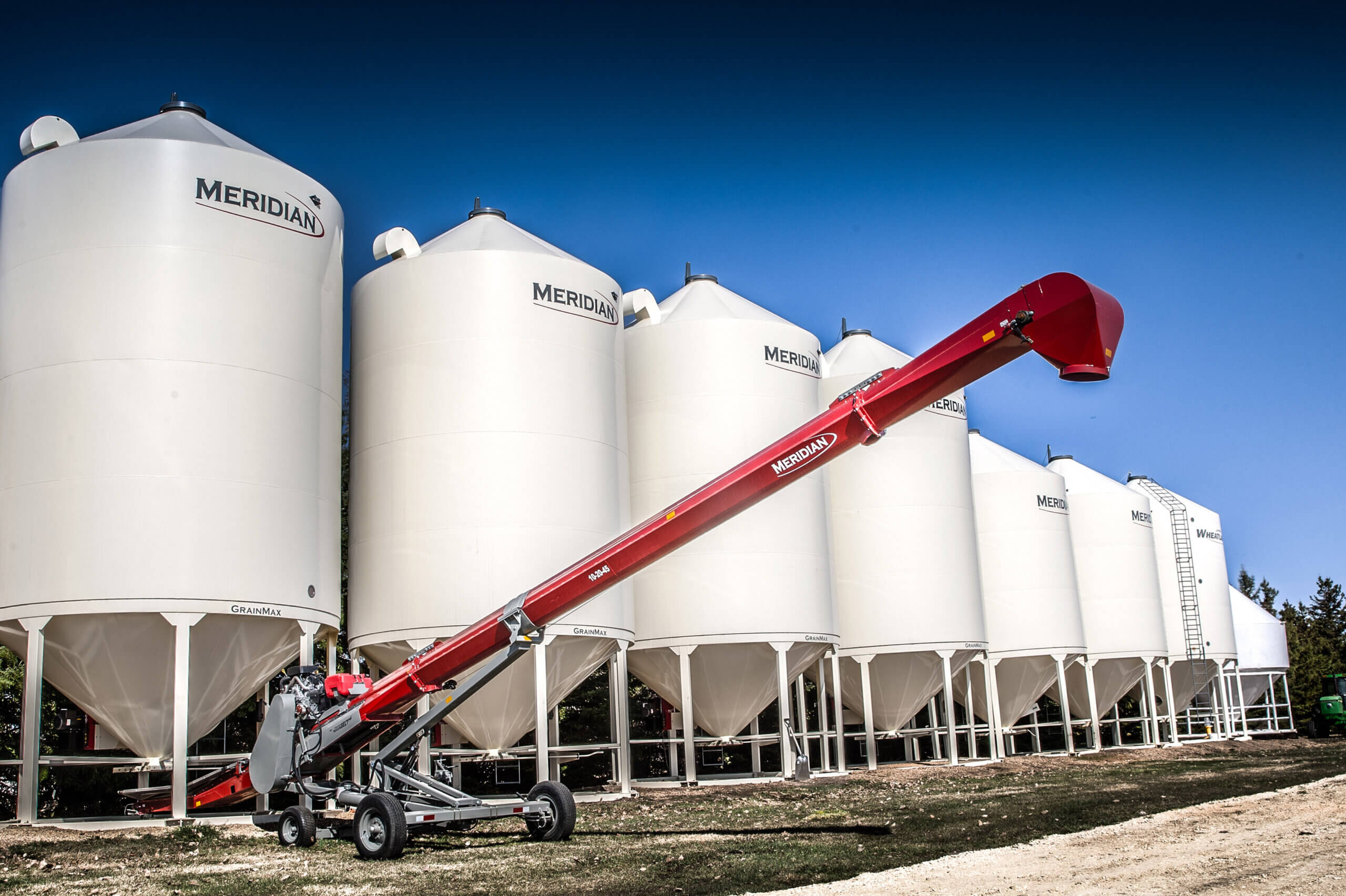

Meridian truck load conveyor beside a row of SmoothWall bins

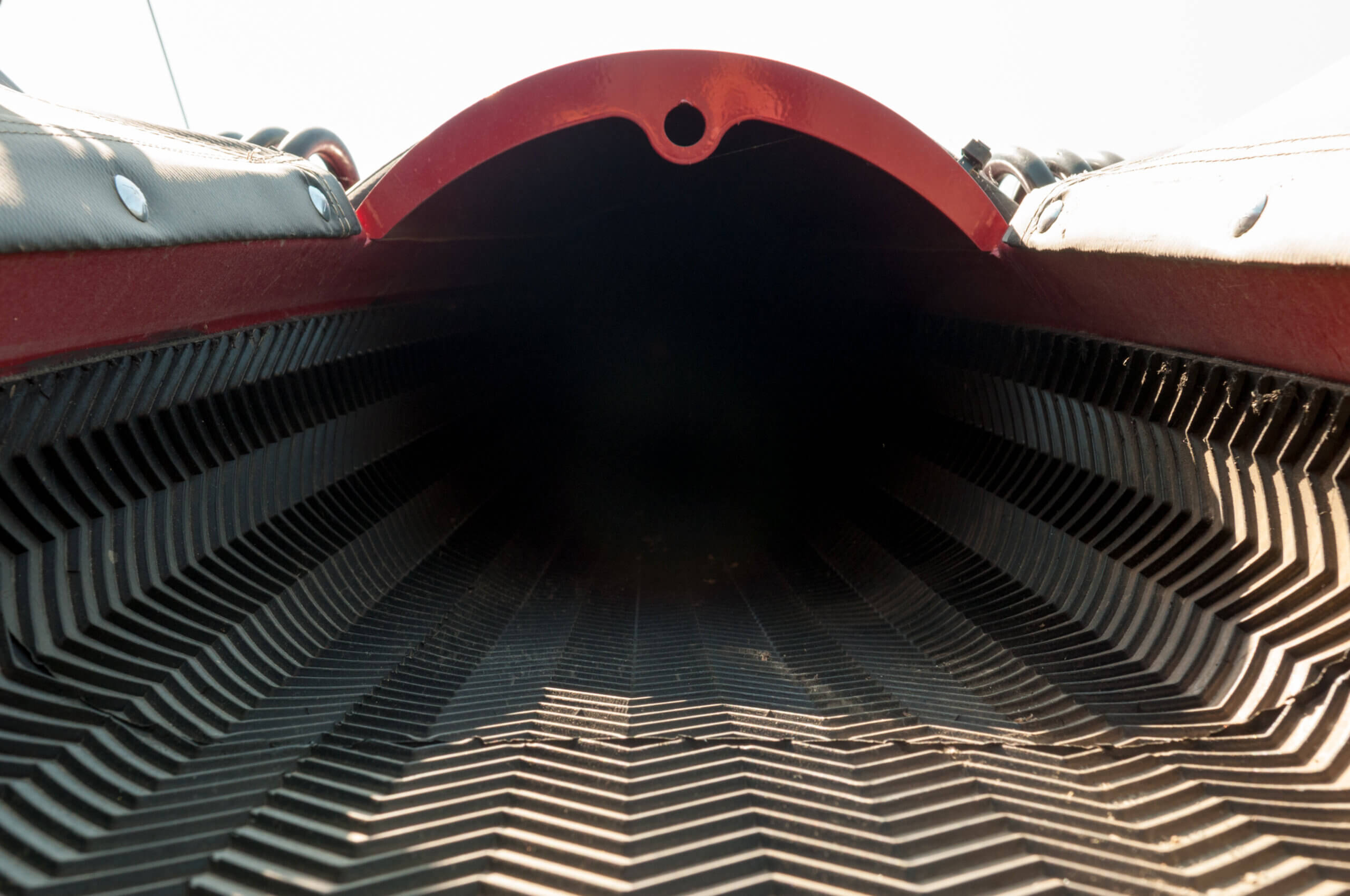

Close-up of the belt inside a Meridian truck load conveyor

FAQ

The Meridian 1548 is designed to handle grain, pulses and fertilizer. The standard 2045 and 2055 models are designed for grain and seed. A Canola Ready Package is available for the 2045 and 2055 when canola or fertilizer is part of the operation.

The Meridian 1548 has a capacity of up to 6,500 BPH. The 2045 and 2055 have capacities up to 12,000 BPH. Actual performance can vary with the material and operating conditions.

The 1548 uses a 15-inch belt and handles up to 6,500 BPH. It offers a straightforward configuration for grain, pulses and fertilizer. The 2045 and 2055 use 20-inch chevron belts and handle up to 12,000 BPH. The 2055 provides greater transport length and reach than the 2045.

The Canola Ready Package for the 2045 and 2055 includes a larger drive roller, skived belt, hopper flashing and scrapers. These changes improve belt contact, help prevent product buildup and leakage, and make canola and fertilizer easier to handle. The package maintains capacities up to 12,000 BPH.

Compare the transport length, required discharge height, operating angle and reach against your loading setup. The 2045 has a transport length of 42 feet, while the 2055 has a transport length of 52 feet and provides greater reach. Your local Meridian dealer can help confirm which model fits your trucks, storage layout and material.

The 1548 hopper is 8 inches high when collapsed and 16 inches high when extended. Its hopper measures 36 inches wide by 60 inches long.

The 1548 is available with a Hydraulic Hi-Power Mover and a hydraulic winch. The standard lift mechanism uses a manual crank, with hydraulic and electric winch configurations available.
