Meridian manufcturingTruck Load Augers

Truck Load Augers

Meridian sells through a network of Authorized dealers. If no dealer is selected, we will reach out with more information
Meridian Manufacturing: Truck Load Augers

Moving grain and seed is part of the rhythm of every farming operation. From loading grain trucks after harvest to filling seed trucks and tenders ahead of planting, Meridian Truck Load Augers provide a practical way to transfer product between storage and transportation throughout the year.

Built for everyday farm use, our Truck Load Augers are available in a range of diameters, lengths, and drive options to suit different storage systems and handling requirements. Their rugged construction and straightforward operation make them a popular choice for loading grain trucks, seed tenders, and transport equipment. With models available in 8″, 10″, 12″, and 13″ diameters and capacities up to 10,000 bushels per hour, Meridian offers truck load augers sized for a wide range of operations.



ModelDiameterTube LengthRaised Discharge HeightLowered Discharge HeightDriveBeltUndercarriage (HSS Tubing)Minimum
Power Required
HD8 – up to 3,000 BPH | 1.4 MT/min
HD8-338″32.8′ | 10m19’11” | 6.1m8’7″ | 2.6mGas, Electric, or PTOBanded Double V-belt2 1/2″ x 2 1/2″ x 1/8″20HP Gas, 10HP Electric
HD8-398″39.37′ | 12m23’7″ | 7.2m8’5″ | 2.6mGas, Electric, or PTOBanded Double V-belt2 1/2″ x 2 1/2″ x 1/8″20HP Gas, 10HP Electric
HD8-468″45.9′ | 14m27’7″ | 8.4m9’9″ | 3.0mGas, Electric, or PTOBanded Double V-belt2 1/2″ x 2 1/2″ x 1/8″20HP Gas, 10HP Electric
HD8-538″52.5′ | 16m31’6″ | 9.6m11’3″ | 3.4mGas, Electric, or PTOBanded Double V-belt2 1/2″ x 2 1/2″ x 1/8″20HP Gas, 10HP Electric
HD8-598″59′ | 18m33’6″ | 10.8m12’8″ | 3.9mGas, Electric, or PTOBanded Double V-belt2 1/2″ x 2 1/2″ x 1/8″20HP Gas, 10HP Electric
HD10 – up to 6,000 BPH | 2.7 MT/min
HD10-4610″45.9′ | 14m27’7″ | 8.4m9’9″ | 3.0mGas, Electric, or PTOBanded Triple V-belt3″ x 3″ x 1/8″35HP Gas, 20HP Electric
HD10-5310″52.5′ | 16m31’6″ | 9.6m11’3″ | 3.4mGas, Electric, or PTOBanded Triple V-belt3″ x 3″ x 1/8″35HP Gas, 20HP Electric
HD10-5910″59′ | 18m33’6″ | 10.8m12’8″ | 3.9mGas, Electric, or PTOBanded Triple V-belt3″ x 3″x 1/8″35HP Gas, 20HP Electric
TL10 – up to 6,000 BPH | 2.7 MT/min
TL10-3910″39.37′ | 12m23’7″ | 7.2m8’5″ | 2.6mGas, Electric, or PTOBanded Double V-belt2 1/2″ x 2 1/2″ x 1/8″27-30HP Gas, 20HP Electric
TL12 – up to 10,000 BPH | 4.5 MT/min
TL12-3912″39.37′ | 12m23’7″ | 7.2m8’5″ | 2.6mGas, Electric, or PTOBanded Triple V-belt3″ x 3″ x 1/8″40-50HP Gas, 20HP Electric
TL1346 – up to 10,000 BPH | 4.5 MT/min
TL134613″48’6″ | 14.8m17’5″ | 5.3m10’7″ | 3.3mDieselHydraulic Driven3.5″ x 3.5″ x 1/8″74HP

Common Features (0 features)

HD8

    • Engine Options

HD10

    • Engine Options

TL10

    • Engine Options

TL12

    • Engine Options

TL1346

Common Options (0 selected)

HD8

HD10

TL10

TL12

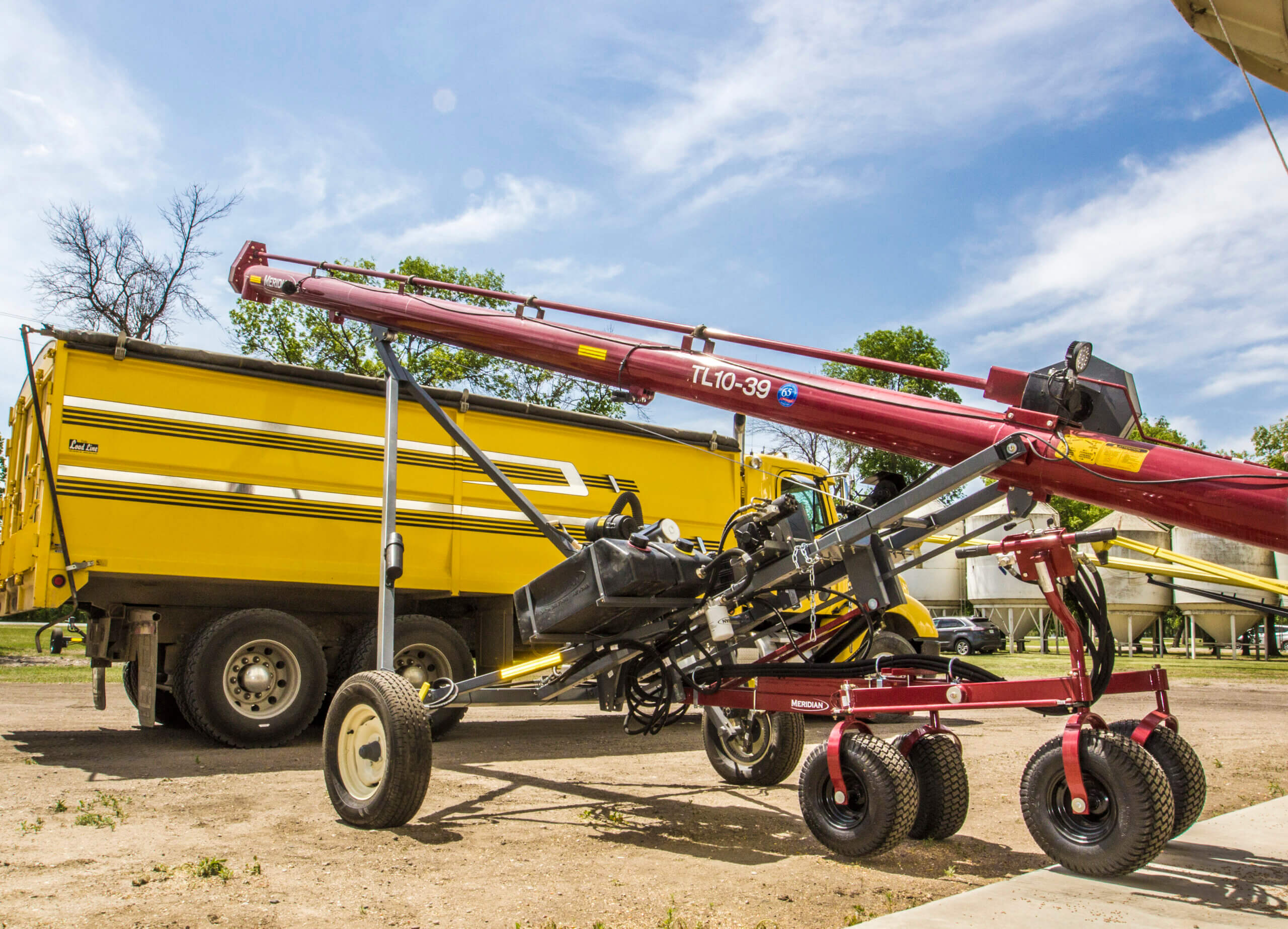

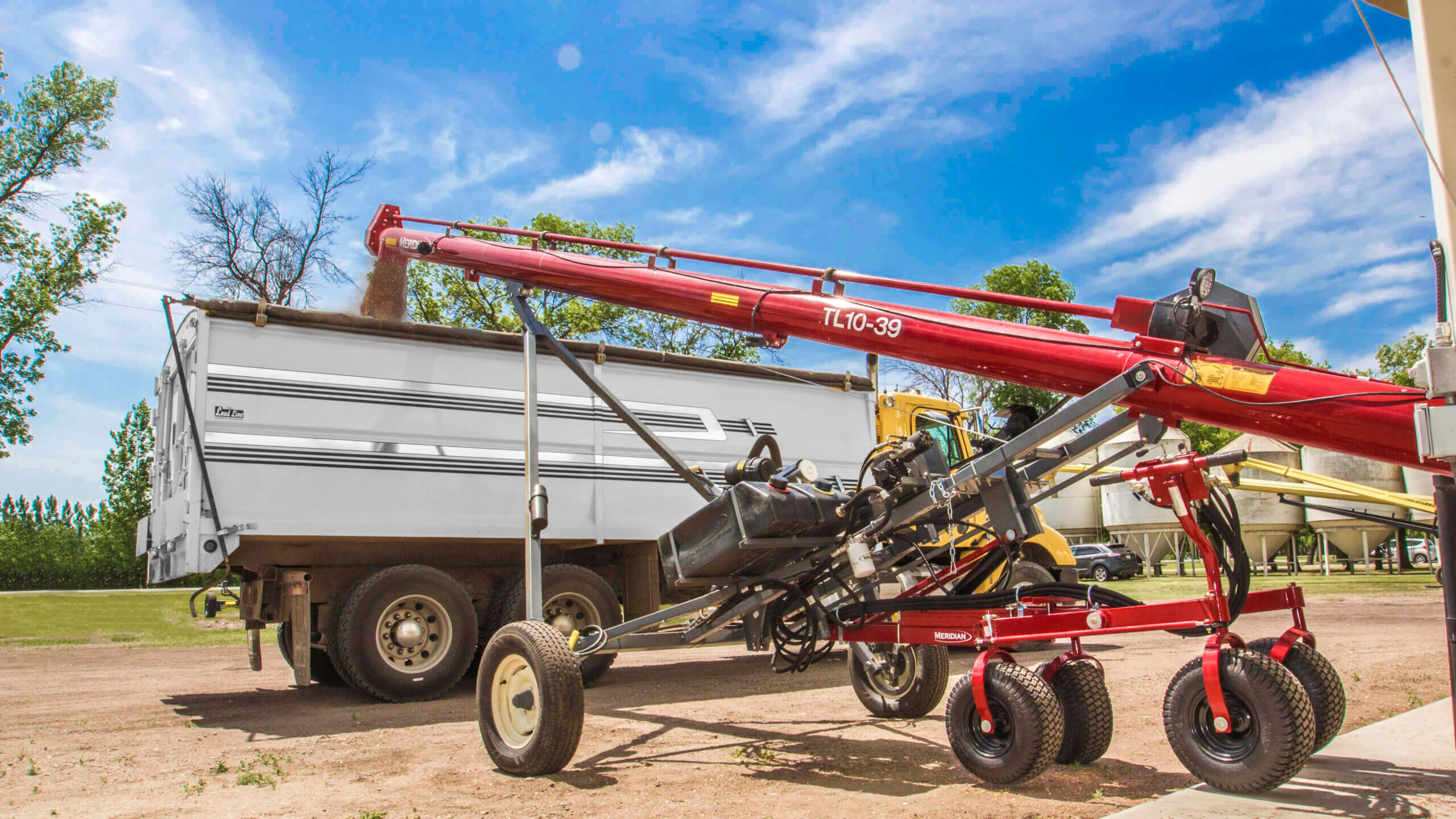

Meridian truck load auger positioned beside a grain trailer

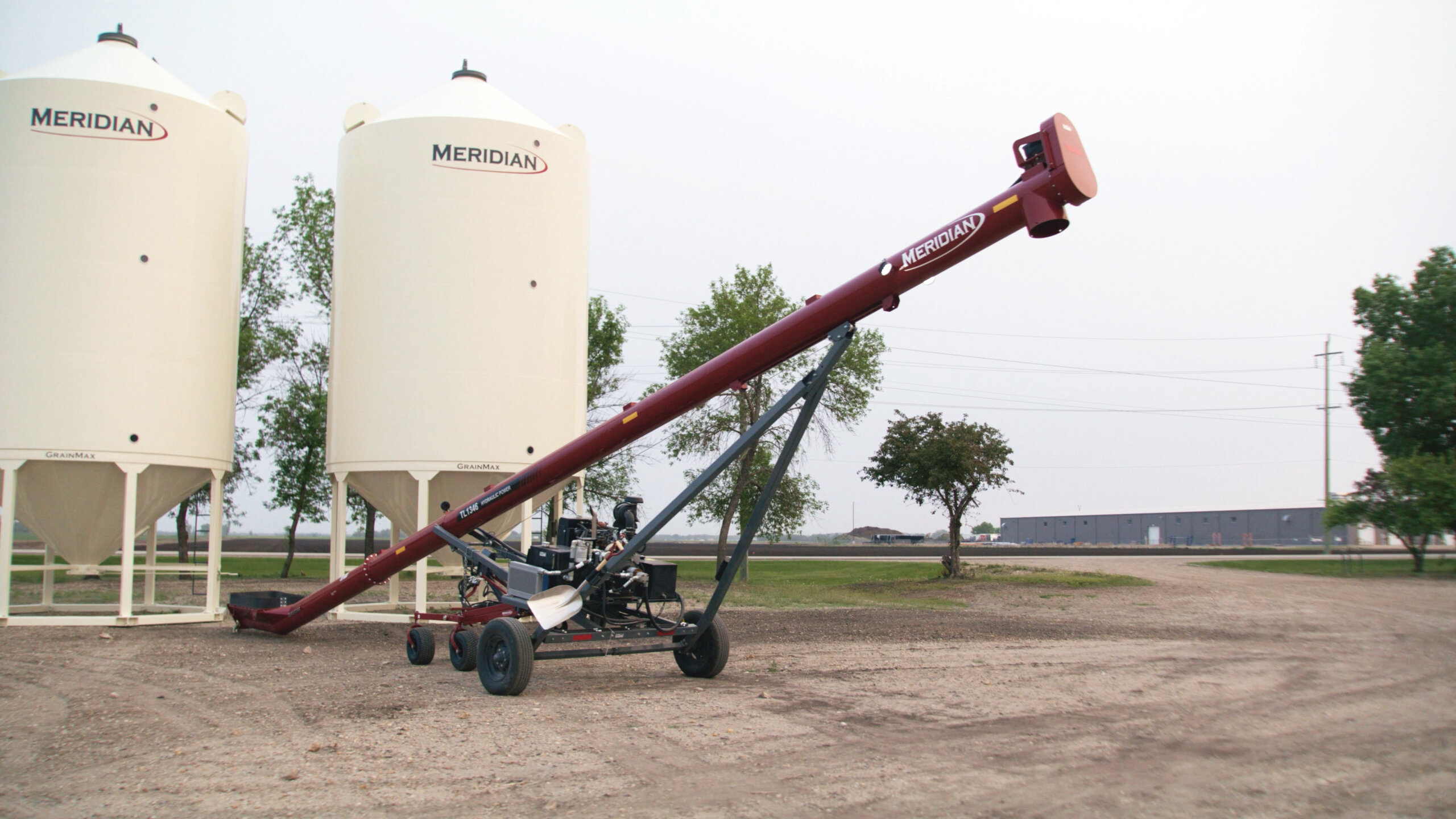

Meridian TL1346 truck load auger beside SmoothWall bins

FAQ

Start with the capacity of your existing grain-handling system, then compare the tube length and discharge height needed to reach your trucks or seed tenders. The right model should keep pace with the equipment feeding it without adding capacity you can’t use. Your Meridian dealer can help confirm the fit based on your bin layout, required reach and available power.

If the truck load auger is consistently the slowest part of your loadout system, a higher-capacity model may reduce loading time and keep trucks moving. Before moving up in size, confirm that your bin unload and other handling equipment can supply grain at the required rate. More auger capacity only creates value when the rest of the system can support it.

Drive availability depends on the model. Meridian HD8, HD10, TL10 and TL12 Truck Load Augers are available with gas, electric or PTO configurations. The 1346TL uses a diesel-powered hydraulic drive. Consider the power already available at your bin site, how often the auger will be moved and where it will be used when comparing configurations.

Compare the raised discharge height of each model with the highest truck or tender you expect to load. The lowered height also matters for moving and positioning the auger around the yard. Ground conditions, auger placement and the distance from the intake to the receiving equipment can affect the practical working height, so confirm the planned setup with your Meridian dealer.

Select HD8, HD10, TL10 and TL12 models can be equipped with a frame-mount mover package that includes hydraulic lift, winch, wheel-drive and steering components. Wheel and jack kits, intake hoppers and telescoping spouts are also available on select models. The 1346TL includes a four-wheel mover with engine controls mounted on the mover handle. Availability varies by model.
