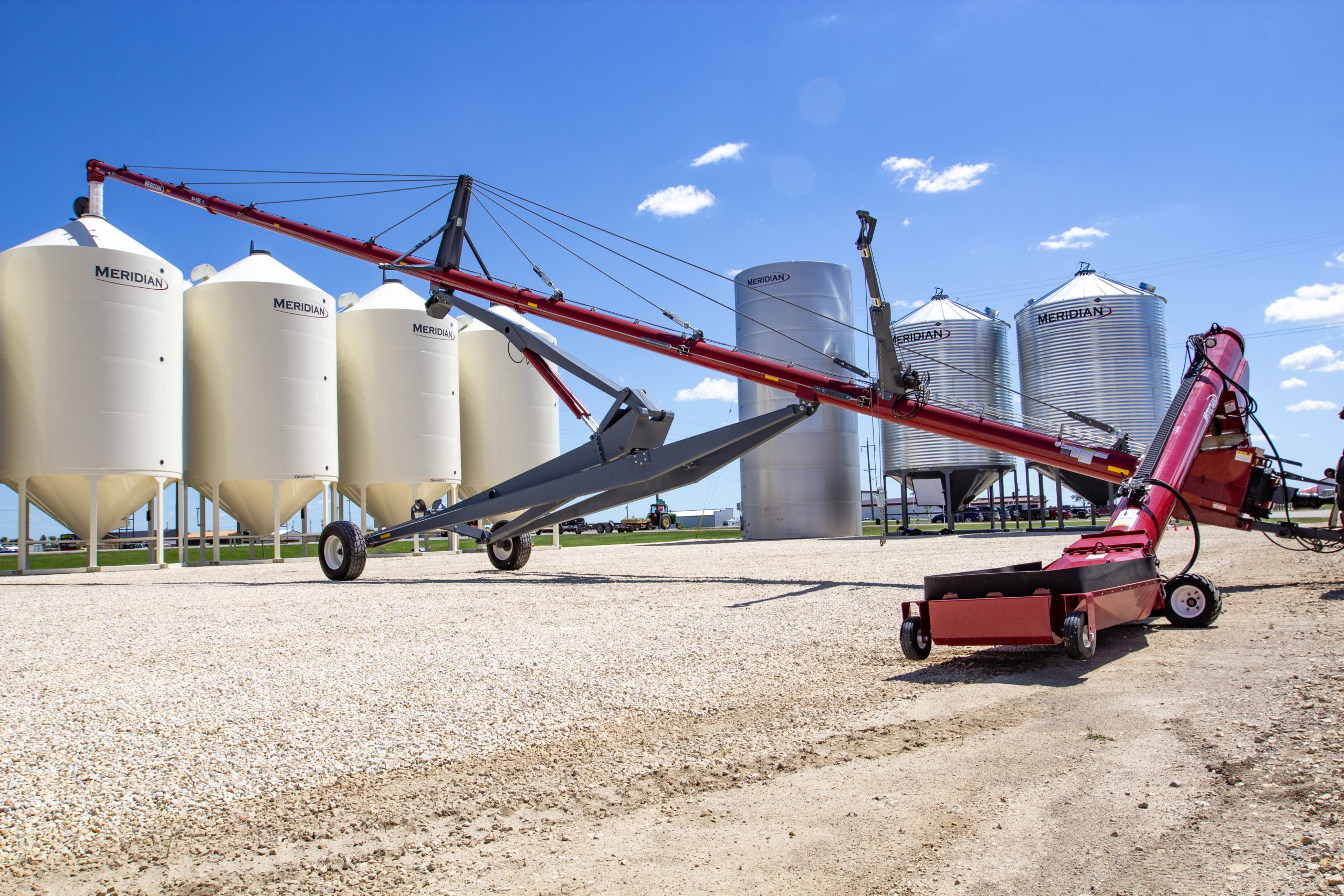

Meridian Swing Augers moving grain from truck to bin

Swing Augers

Meridian sells through a network of Authorized dealers. If no dealer is selected, we will reach out with more information

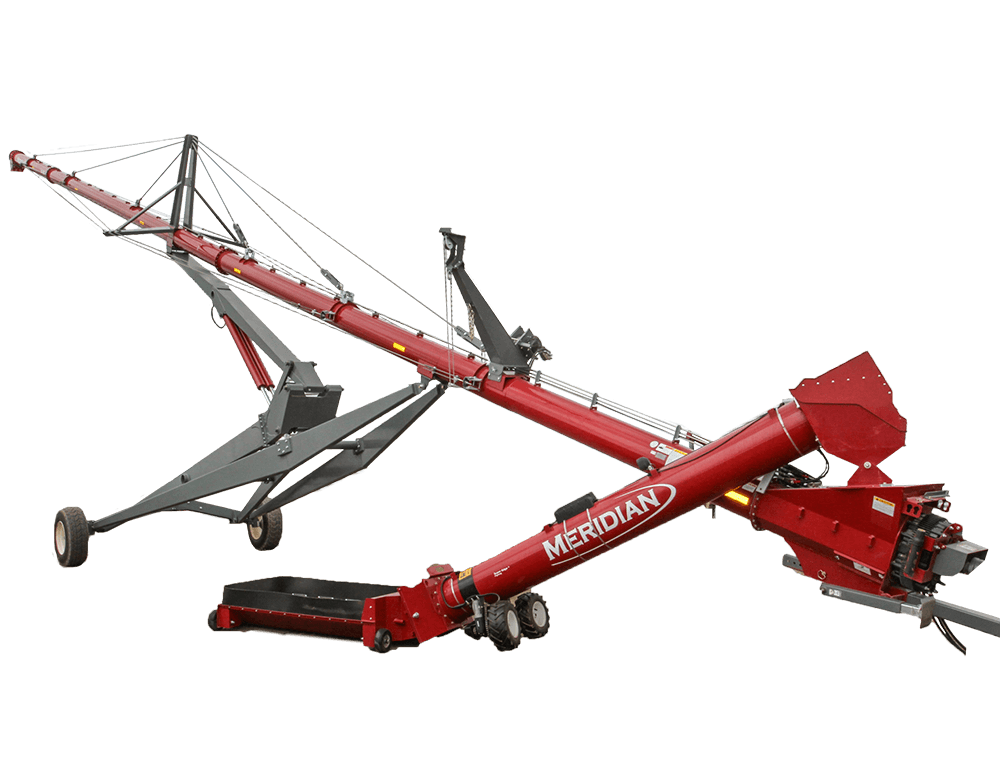

Red Meridian Swing Auger

When trucks are arriving faster than the bin auger can clear them, capacity at the hopper matters. Meridian Swing Augers are available in 10-, 12-, 13- and 14-inch models with capacities from 5,450 to 15,000 BPH, giving you a range of lengths, reaches and horsepower requirements to match your storage setup.

Low-profile swing hoppers and available hopper movers help position the intake under the trailer, while Meridian extendable swing options reduce truck repositioning between compartments. Heavy-duty truss systems, gearboxes and continuous Super-Edge™ flighting are built for the workload that comes with higher-capacity bin filling.

Compare the models below to find the Meridian Swing Auger that fits your bins, trucks and available tractor horsepower.

ModelTube DiameterTube LengthDischarge Height (fully raised)Reach: Axle to Discharge (fully raised)HP Requirement
10 inch Models – up to 5,450 BPH
106510″65′ | 19.8m39’3″ | 11.9m23’5″ | 7.1m100 HP
107510″75′ | 22.9m45′ | 13.7m31’7″ | 9.6m110 HP
108510″85′ | 25.9m50’9″ | 15.5m39’7″ | 12.1m120 HP
12 inch Models – up to 9,000 BPH
SLMD 12-7212″72’6″ | 22.1m45’6″ | 13.9m25’8″ | 7.8m100-120 HP
SLMD 12-7912″79′ | 24m49’6″ | 15.1m28’3″ | 8.6m100-120 HP
SLMD 12-8512″85’7″ | 26.1m53’7″ | 16.3m30’10” | 9.4m100-120 HP
SLMD 12-9512″95’7″ | 29.1m57’1″ | 17.4m40’10” | 12.5m100-120 HP
13 inch Models – up to 13,000 BPH
137513″75′ | 22.8m44’4″ | 13.5m30’6″ | 9.3m100-125 HP
138513″85′ | 25.9m49’7″ | 15.1m39’5″ | 12m100-125 HP
139513″95′ | 28.9m59’4″ | 18.1m37′ | 11.2m175-195 HP
1311513″115′ | 35m71’7″ | 21.8m52’10” | 16.1m175-195 HP
14 inch Models – up to 15,000 BPH
149514″95′ | 29m69’3″ | 21.1m29’8″ | 9m170-225 HP
1411514″115′ | 35.1mAxles Retracted: 83’3″ | 25.4m, Axles Extended: 84’2″ | 25.7mAxles Retracted: 42’10” | 13.1m, Axles Extended: 41’11” | 12.8m170-225 HP



Common Features (0 features)

10"

12"

13"

14"

Common Options (0 selected)

10"

12"

13"

14"

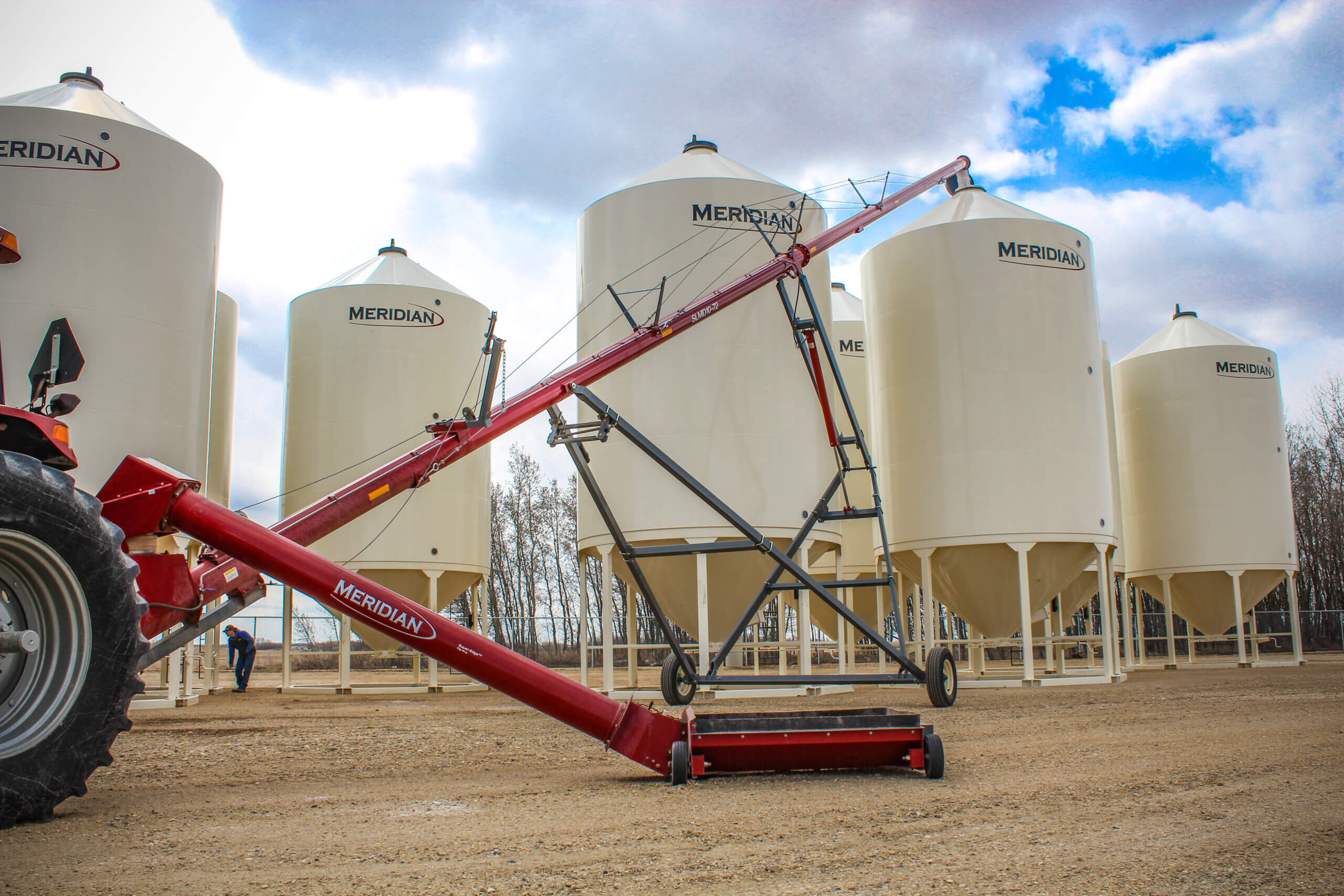

Meridian swing auger positioned to fill a row of SmoothWall bins

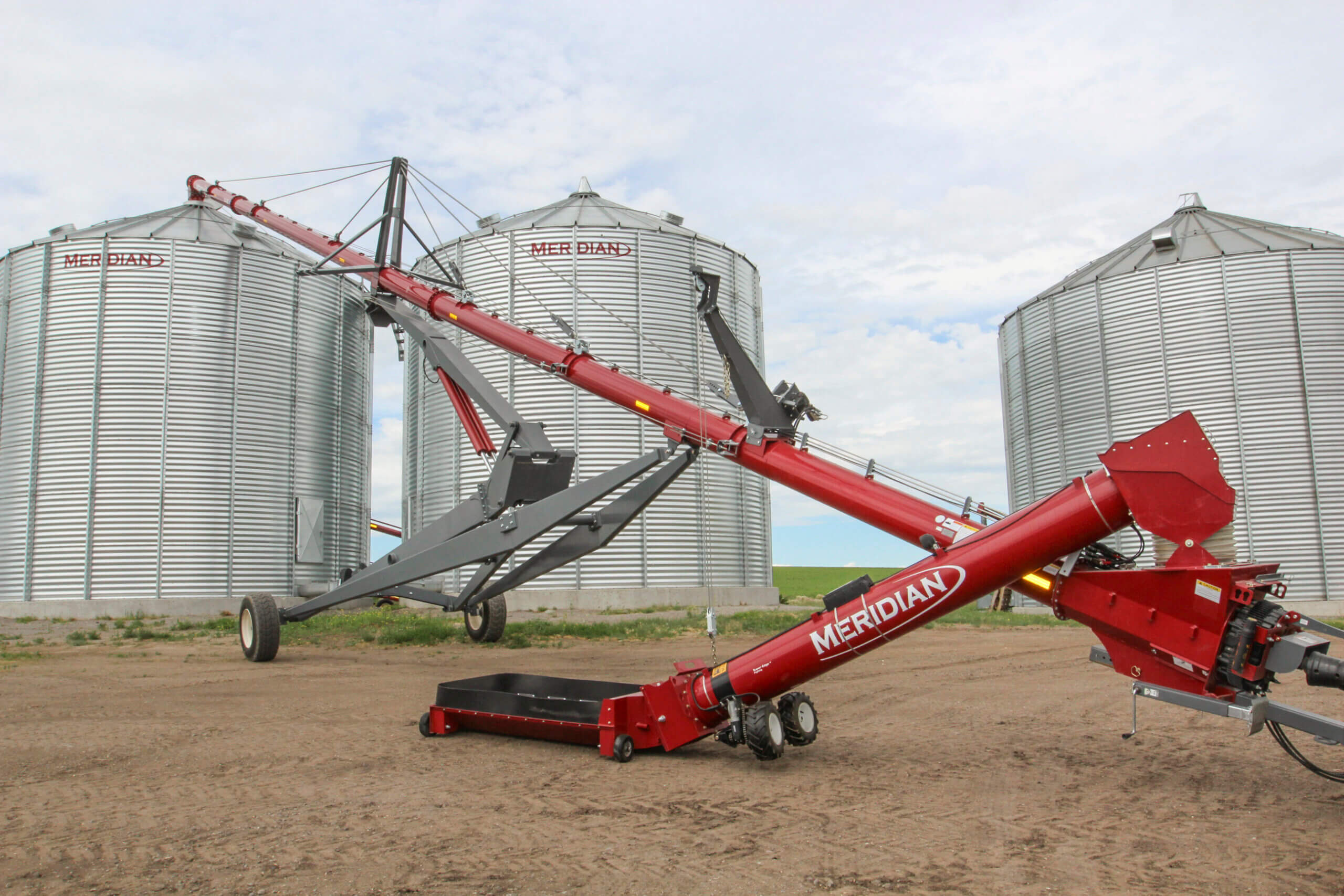

Meridian swing auger positioned between corrugated grain bins

FAQ

Start with the capacity you need, then compare tube length, discharge height, reach and horsepower requirements against your bin site and available tractor. The right model must reach the fill point while keeping trucks moving at the pace your receiving and storage system can handle. A Meridian dealer can help confirm the fit before you order.

Horsepower requirements vary by tube diameter and length. Longer, higher-capacity models require more power, so compare the requirements in the model table with the tractors available on your farm. Your Meridian dealer can also help account for operating conditions and the commodities you handle.

Look beyond maximum bushels per hour. Compare hopper clearance, positioning options, tube length, discharge height, reach, horsepower requirements and the construction of the flighting, gearbox and truss system. These factors determine how well the auger will fit your site and perform during harvest.

Meridian extendable swing options are available within the 13- and 14-inch product ranges. They provide additional positioning flexibility at the intake and can reduce how often the truck must be repositioned between compartments. Availability varies by model, so confirm the required configuration with your Meridian dealer.

Consider stepping up when your current auger is causing trucks to wait at the bin or limiting the pace of harvest. Before selecting a larger model, confirm that your tractor has sufficient horsepower and that the rest of your grain handling and storage system can accept the additional flow.
