Meridian Manufacturing: Electric Auger

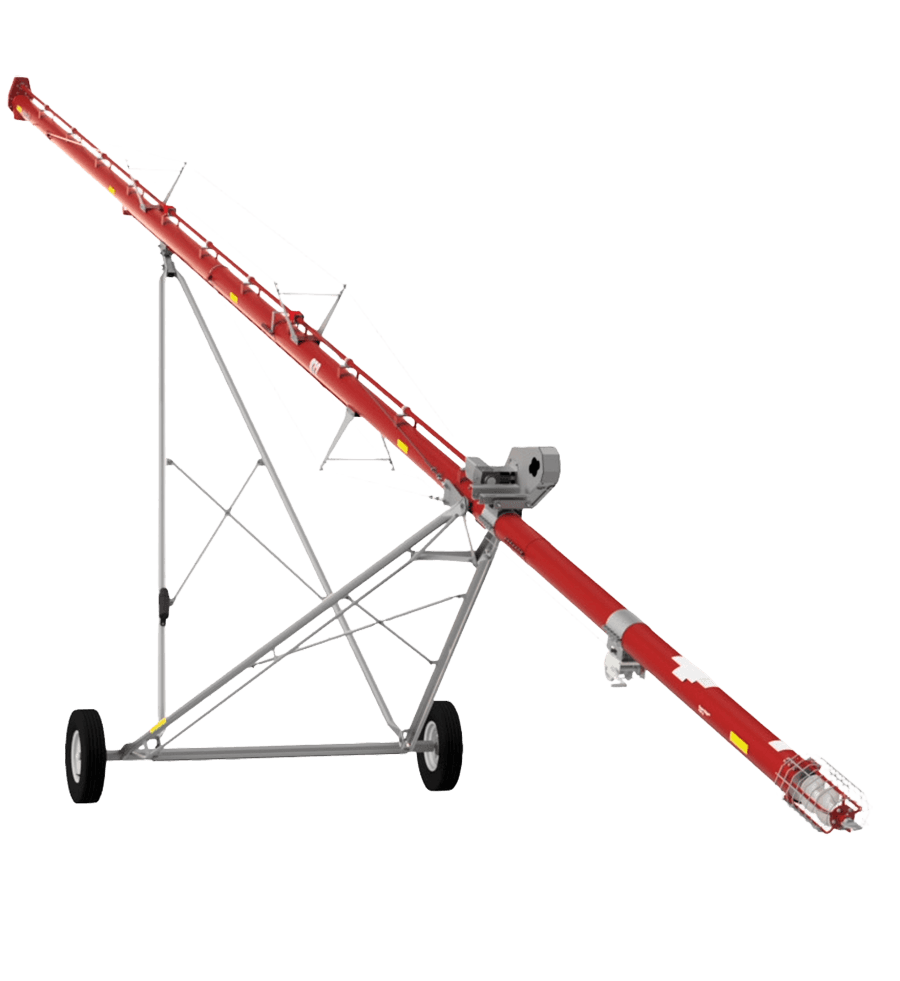

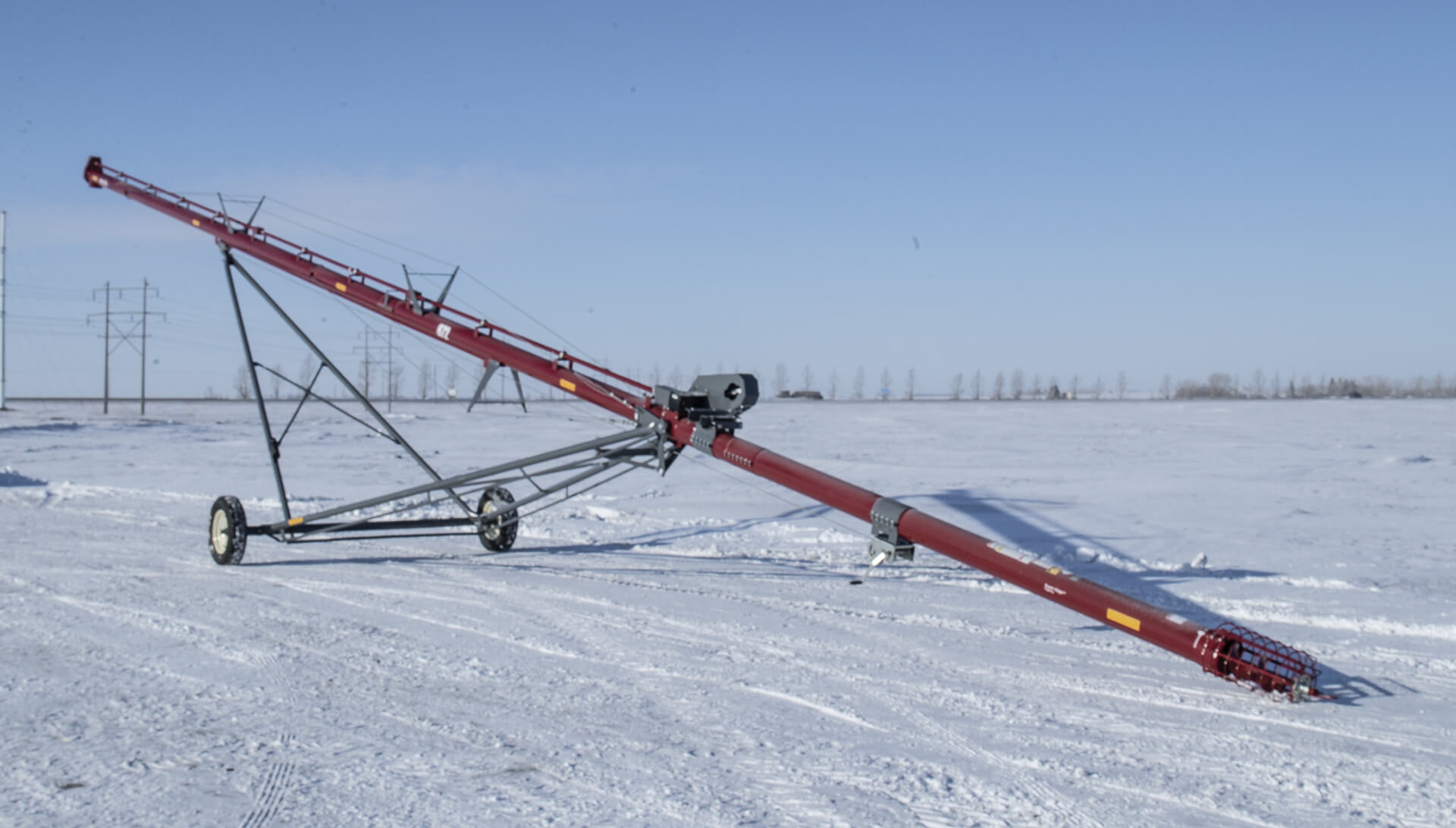

The Meridian 872 Electric Auger delivers up to 3,000 BPH for grain dryer systems and other fixed grain handling setups. Its electric drive configuration keeps a tractor free for other work while providing dependable power where the auger is used regularly.

The 872 combines an 8-inch tube with continuous Super-Edge™ flighting, full-length drive shaft guards and a heavy-duty gearbox with forged steel gears. It’s mounted on a transportable frame, allowing it to be moved when the setup changes.

The 872 is configured for a 15 HP electric motor. Electric motor not included.

Interested in the Meridian 872 Electric Auger? Click Request Information and we’ll connect you with a Meridian dealer.

872 Electric Auger

ModelAuger TubeAuger FlightDriveFrameCapacityHitch WeightOverall WeightTransport WidthTransport LengthTransport Height
8728″ OD x 13 GA3/16″  Super-Edge Flight on 1-1/2″ CoreConfigured for 15 HP Electric Motor3″ OD x 10 GA Steel Tube on 15″ WheelsUp to 3,000 BPH140lbs Without Electric Motor2,150 lbs10’9″ | 3.3m72’7″ | 22.1m13′ (at 18″ hitch height) | 4m (at .46 m hitch height)
Electric motor not included

Common Features (0 features)

FAQ

The 872 is suited to grain dryer systems and other fixed grain handling setups where electric power is available. Its transportable frame also allows it to be moved when the configuration or location changes.

The Meridian 872 has an 8-inch auger tube and a rated capacity of up to 3,000 bushels per hour. Actual performance will depend on the grain, operating conditions and system configuration.

No. The 872 is configured for a 15 HP electric motor, but the motor isn’t included. Confirm the motor and electrical requirements with your Meridian dealer before installation.

In a fixed setup, an electric auger doesn’t require a tractor for power. That keeps the tractor available for other work and makes the auger easier to incorporate into a regularly used grain drying or storage system.

Yes. The 872 is mounted on a transportable frame. It’s intended primarily for dedicated grain handling applications, but it can be repositioned when the setup changes.

Provide the intended application, required capacity, inlet and discharge locations, available electrical power and any site restrictions. Your Meridian dealer can use that information to confirm whether the 872 fits the installation.
