When you’re supplying multiple planters or moving more than one product, tender capacity is only part of the decision. You also need the compartment layout, discharge reach and unloading system to fit the way your crew works.

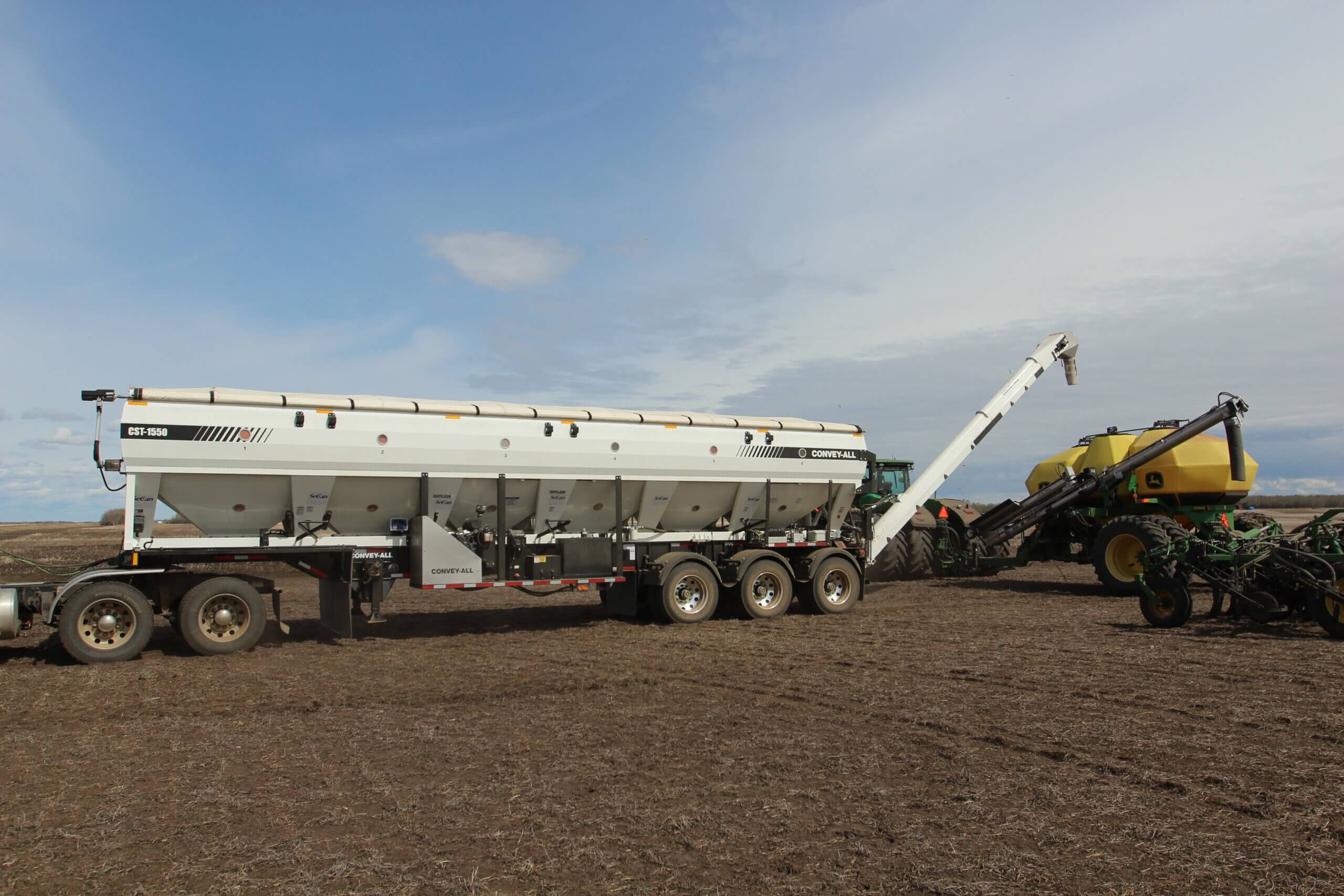

Convey-All® Commercial Seed Tenders carry seed and dry fertilizer in separate compartments and unload through an integrated conveyor system at rates up to 2 tons per minute. Self-contained hydraulics and a 144° conveyor swing give operators the capacity and positioning range needed to load planters and air seeders in the field.

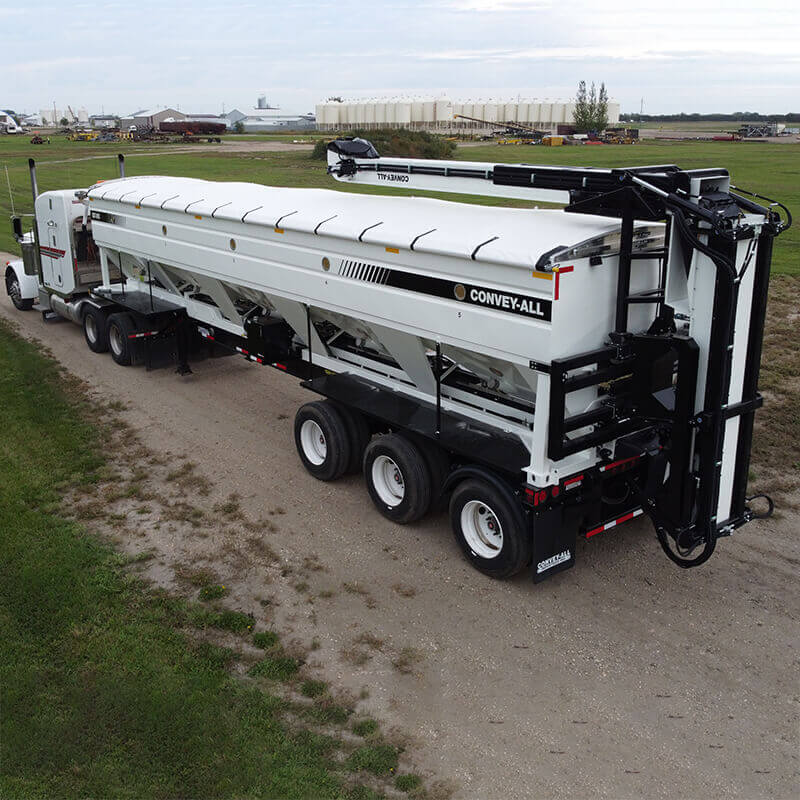

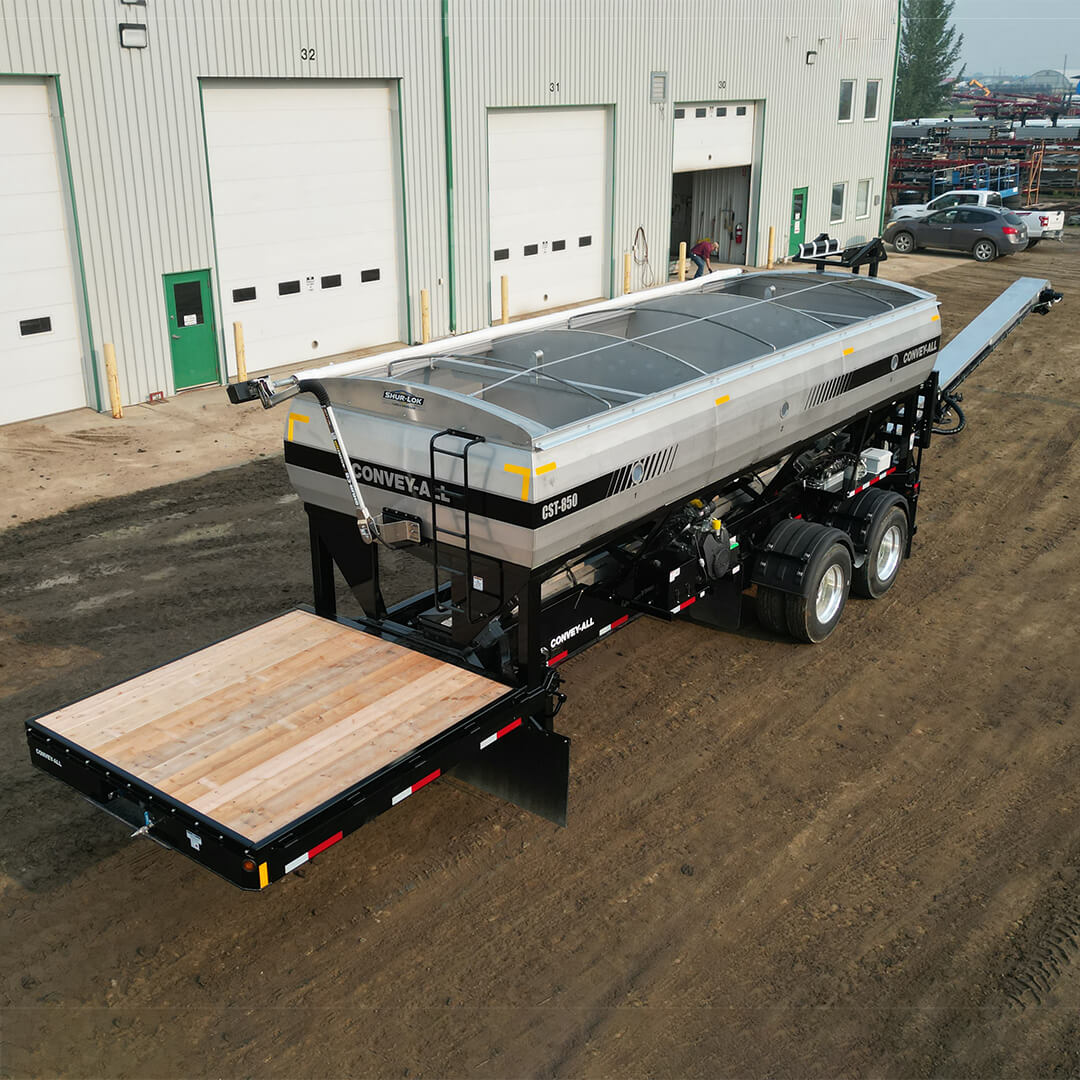

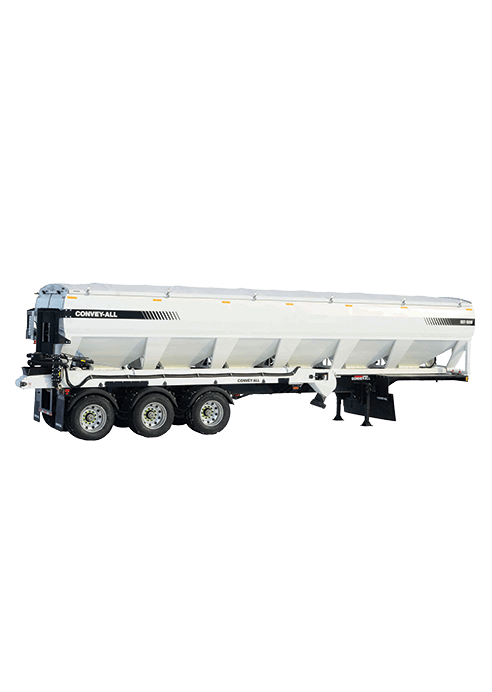

Choose from the six-compartment CST-1550, the compact stainless steel CST-850 or the CST-39C for markets outside North America. Request information, and your local Meridian or Convey-All dealer can help confirm which model and available options fit your products, equipment and delivery requirements.
| Model | Discharge Heights | Conveyor Swing and Reach | Compartment Volume | Seed Units | Bushels | Total Capacity |
| CST-1550 | 8′2″ at 15° to 18′8″ at 40° | 144° Swing with 43′ 2″ Reach | 258.5 ft³ per compartment, 1551 ft³ total | 320 per compartment, 1,920 total | 208 per compartment, 1,248 total | 48 tons / 43.6 MT |
| CST-850 | 9’3″ at 15° to 18’11” at 40° | 144° Swing with 42’10” Reach | 275 ft³ per compartment, 850 ft³ total | 340 per compartment, 1,019 total | 221 per compartment, 663 total | 25.6 tons / 23.2 MT |
| CST-39C | 9′3″ at 15° to 19′8″ at 40° | 144° Swing with 43′11″ Reach | 270 ft³ per compartment, 1350 ft³ total | 332 per compartment, 1,661 total | 216 per compartment, 1,080 total | 40.5 tons / 36.8 MT |
