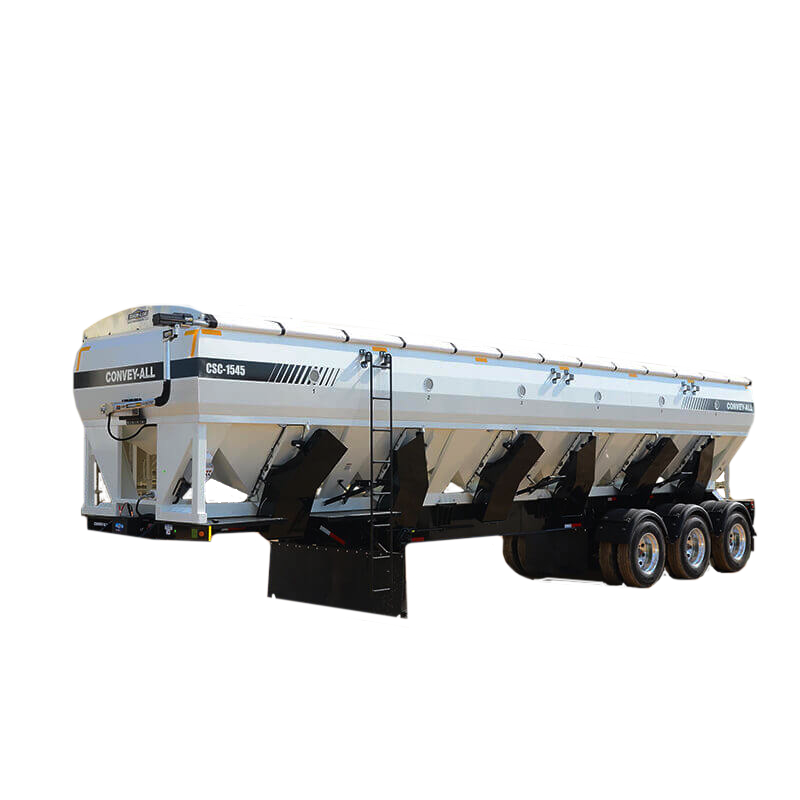

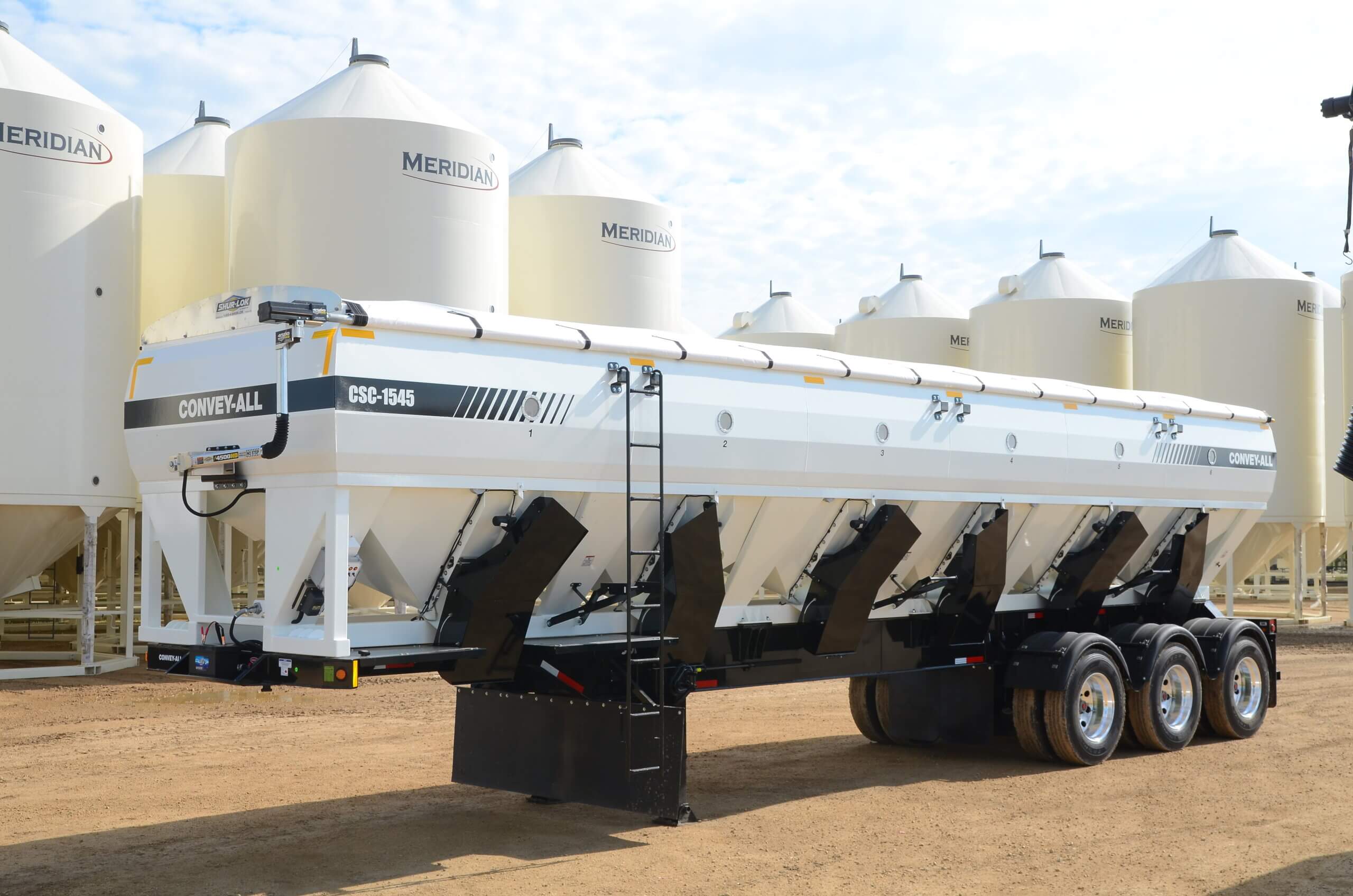

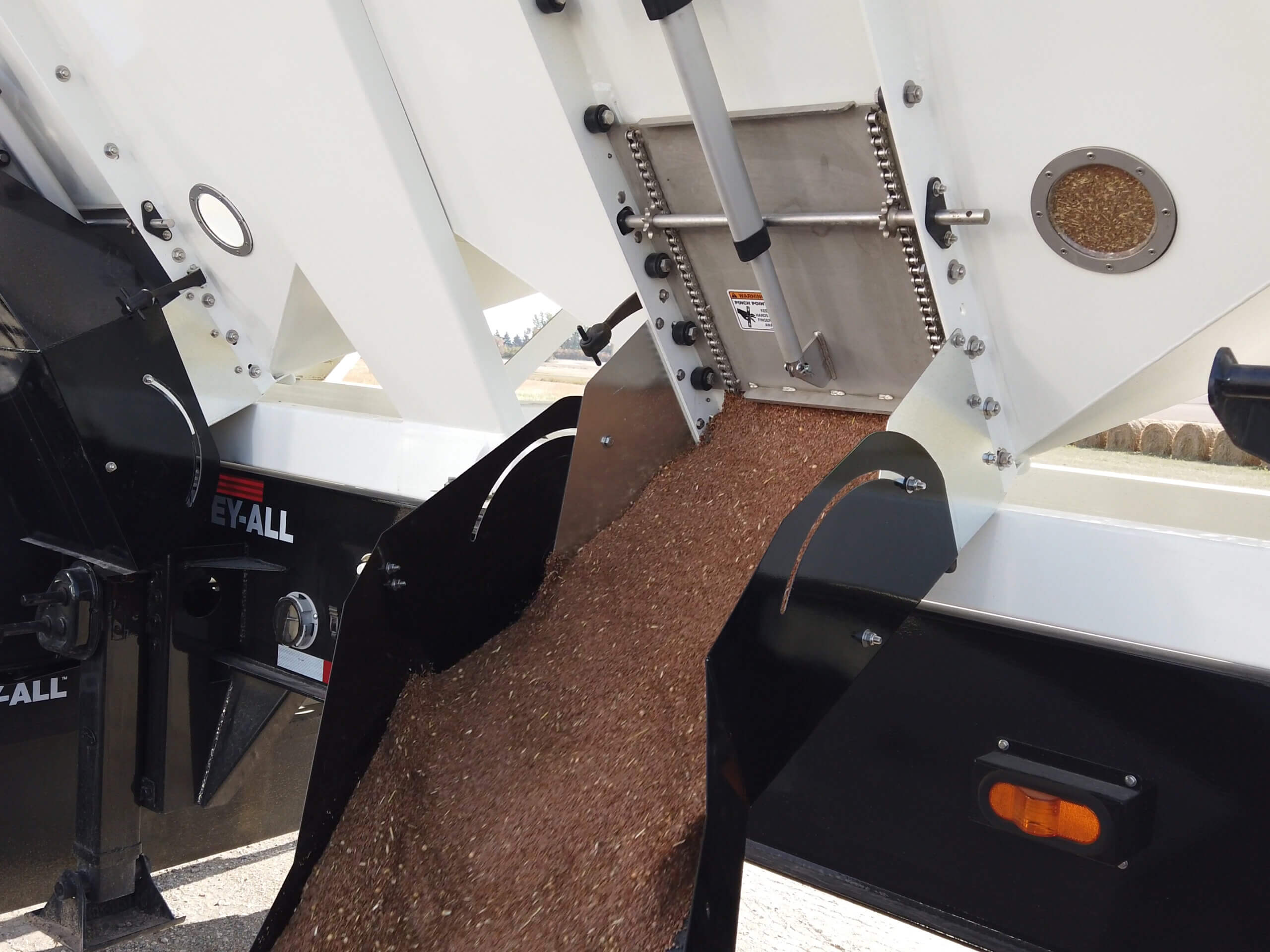

For operations that already have the conveyor capacity they need, the Convey-All® CSC-1545 Commercial Seed Cart provides high-volume transport without adding an integrated unloading conveyor. Six separate compartments carry seed, dry fertilizer or grain, with gravity-fed side chutes directing product into the handling equipment already at the site.
The CSC-1545 provides 1,516 cubic feet of total compartment volume, equal to approximately 1,880 seed units or 1,218 bushels. Its 12-gauge hopper construction, air-ride trailer and two sight glasses per compartment are built for repeated seasonal and commercial use.

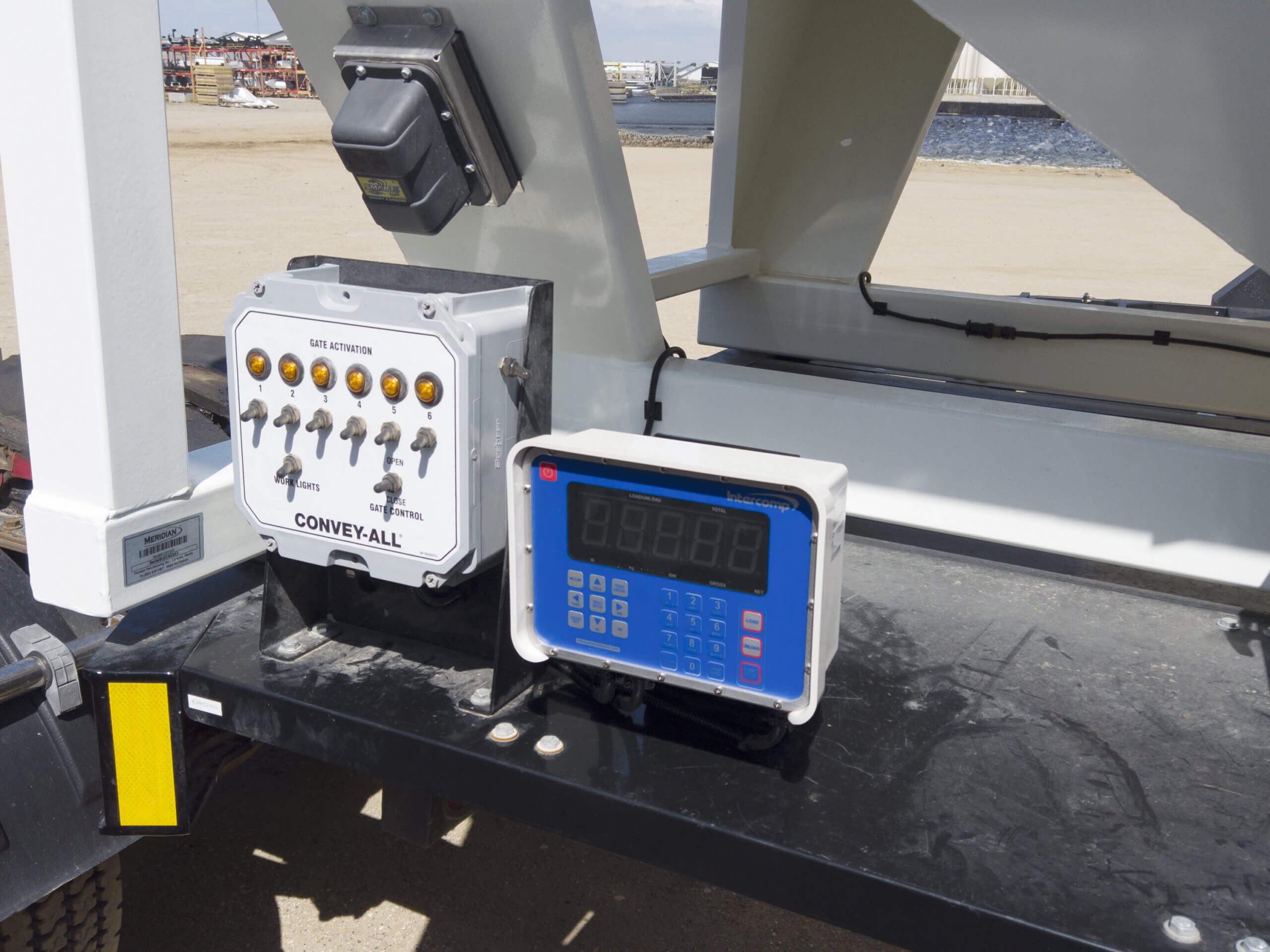

Request information about the CSC-1545, and your local Meridian or Convey-All dealer will help confirm the right chute controls, scale package and configuration for your materials and existing handling equipment.
| Discharge Heights w/o extension | Discharge Heights with extension | Ft3/Compartment (total) | Units/Compartment (total) | Bushels/Compartment (Total) | Total Capacity Imperial | Total Capacity Metric |
| 38″ | 34″ | Ends: 286, Middle 4: 236 (1,516) | Ends: 355, Middle 4: 292 (1,880) | Ends: 230, Middle 4: 190 (1,218) | 47 Ton | 42.6 MT |
