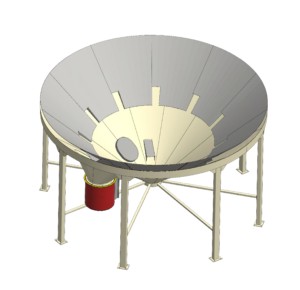

The right AirMax® Aeration System depends on your bin capacity, hopper design and whether you are equipping a new bin or retrofitting an existing one. Meridian offers one-piece vertical, sectional vertical and horizontal configurations for 40° and 45° hopper cones, with models for bins from 3,300 to 20,000 bushels.

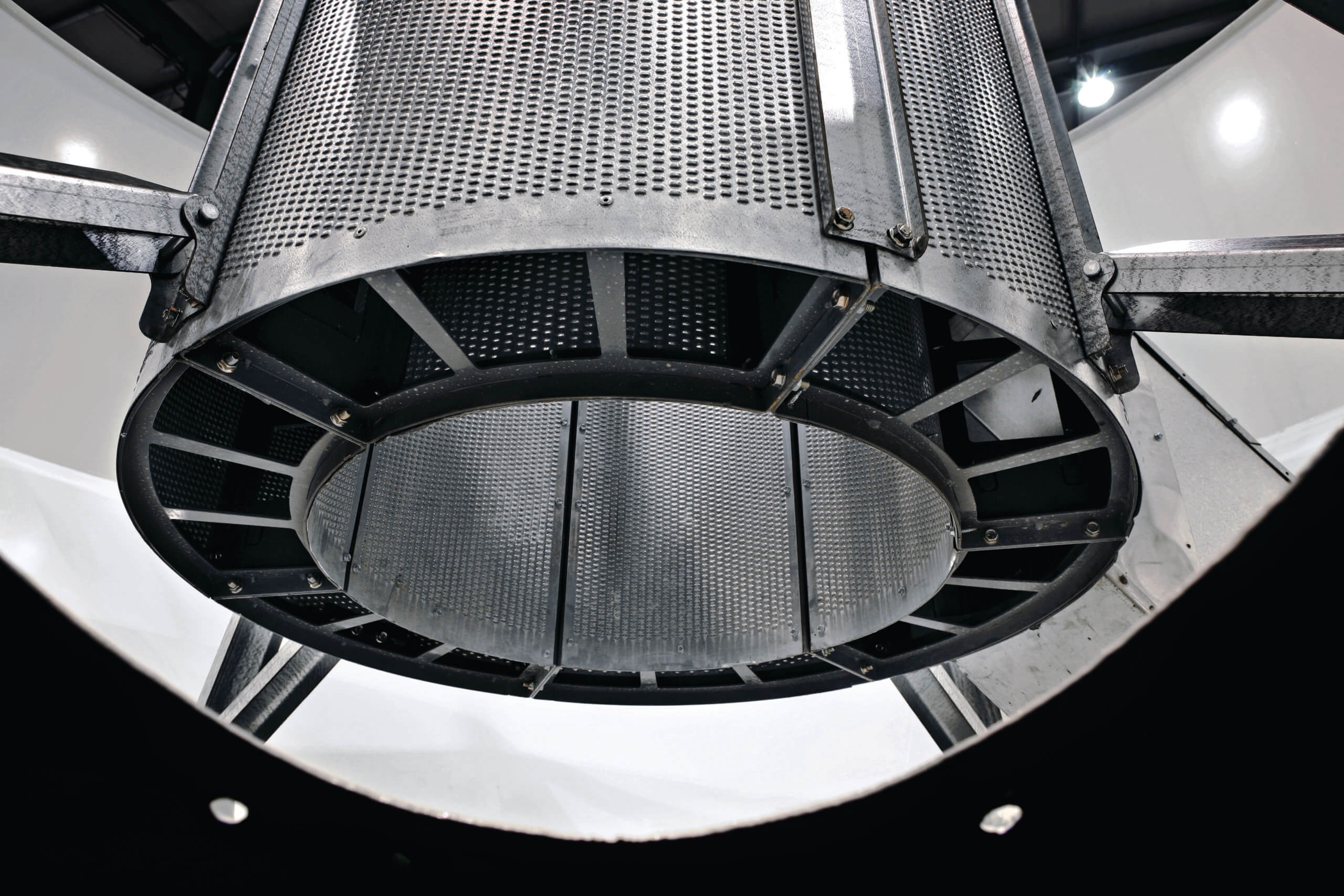

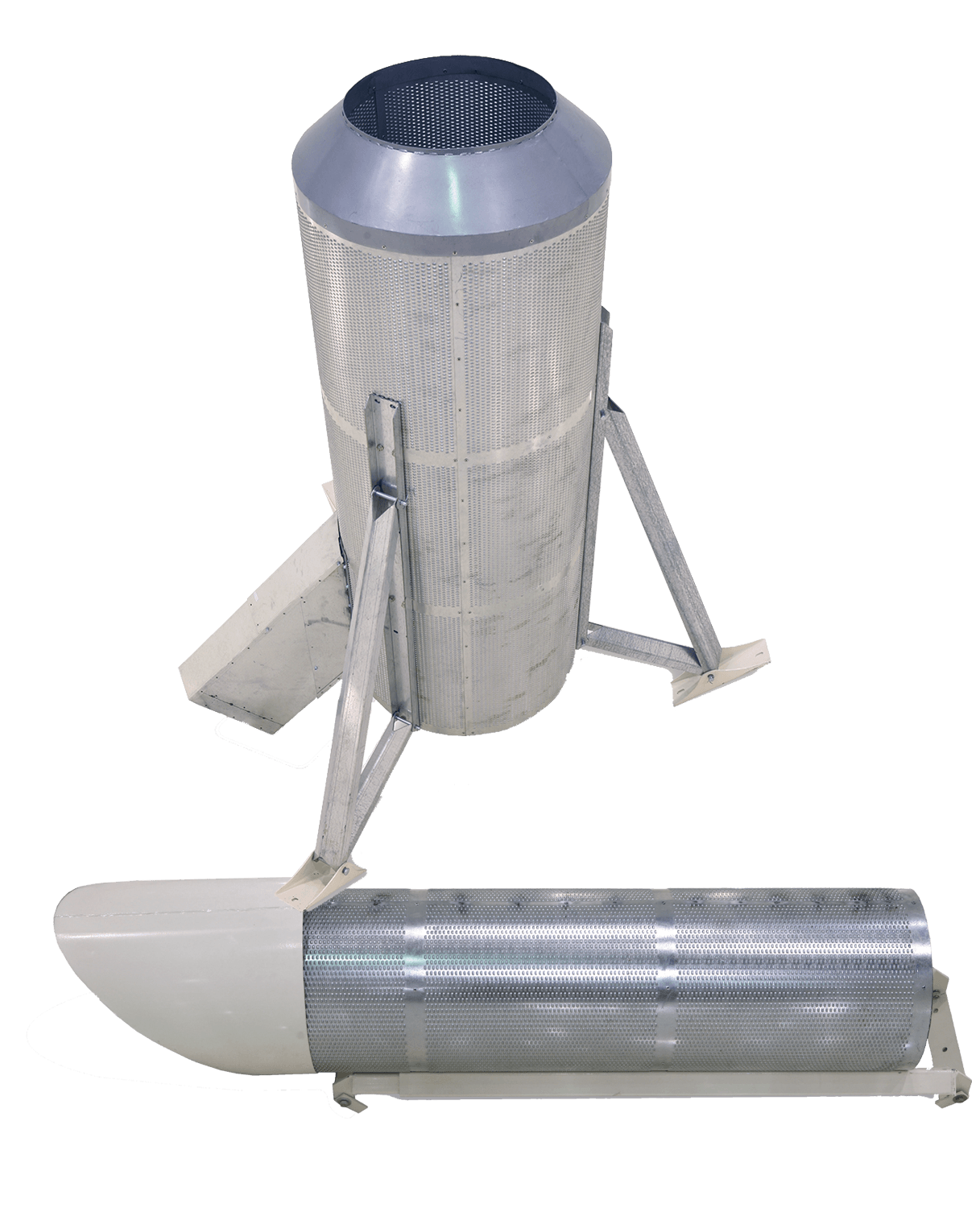

One-piece vertical systems are designed for factory installation on new Meridian bins. Sectional vertical systems are available for retrofit and high-airflow applications. Horizontal systems feature a removable duct for easier cleaning and can be removed when an approved fertilizer-compatible bin is used for fertilizer storage.
| Model | Maximum Bin Capacity (bushels) | Dimensions | Internal Diameter | Screen Surface Area (sq. in.) | Inlet Size and Type |
| One-Piece Vertical Aeration | |||||
| V3004 | 3,500 | 30″ x 4′ | 20″ | 6,299 | 9″ x 14″ Rectangular |
| V3006 | 5,000 | 30″ x 6′ | 20″ | 9,656 | 9″ x 14″ Rectangular |
| V3008 | 6,000 | 30″ x 8′ | 20″ | 13,132 | 9″ x 14″ Rectangular |
| V4504 | 7,000 | 45″ x 4′ | 30″ | 9,301 | 14″ x 17″ Rectangular |
| Sectional Vertical Aeration (retrofits and high-flow applications) | |||||
| VS3004 | 5,000 | 30″ x 4′ | 20″ | 5,245 | 9″ x 14″ Rectangular |
| VS3006 | 8,000 | 30″ x 6′ | 20″ | 7,990 | 9″ x 14″ Rectangular |
| VS4504 | 15,000 | 45″ x 4′ | 30″ | 7,925 | 9″ x 14″ Rectangular |
| VS4506 | 20,000 | 45″ x 6′ | 30″ | 12,100 | 14″ x 17″ Rectangular |
| Horizontal Aeration, Removable for Approved Fertilizer-Storage Bins | |||||
| H1808 | 3,300 | 18″ x 8′ | N/A | 3,478 | 18″ Round |
| H2408 | 5,000 | 24″ x 8′ | N/A | 4,660 | 24″ Round |
| H2410 | 6,500 | 24″ x 10′ | N/A | 6,284 | 24″ Round |
| H2410-HD | 8,500 | 24″ x 10′ | 24″ | 6,284 | 24″ Round |
| H2412-HD | 11,000 | 24″ x 12′ | 24″ | 7,908 | 24″ Round |
